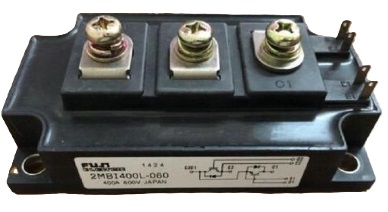

2MBI400L-060Fuji Electric - IGBT Module

2MBI400L-060 Description

The Fuji Electric 2MBI400L-060 is an IGBT module rated at 600 V and 400 A, available from USComponent. Typical applications for this type of device include variable-frequency motor drives, servo drives, UPS systems, welding machines, induction heating and solar or wind inverters.

USComponent specializes in sourcing power modules and industrial electronic components, including legacy and hard-to-find parts for repair and maintenance. Please confirm ratings, package and pin-out against the manufacturer's datasheet before ordering, and request a quote for current pricing and lead time on the 2MBI400L-060.

Target Applications

Fuji Electric 2MBI400L-060 is used for inverters and AC motor drives, servo drives, UPS systems, welding machines, induction heating, solar and wind power converters and other high-power switching equipment.

Key Specifications

Manufacturer	Fuji Electric
Configuration	Dual IGBT module, L-Series (high speed switching)
VCES	600 V
IC	400 A (continuous)
Collector power dissipation	1600 W
VCE(sat) max.	3.5 V
Switching time max.	ton 0.8 µs / toff 1.0 µs / tf 0.35 µs
Package	M225
Weight	380 g
