2MBI25F-120Fuji Electric - IGBT power module

2MBI25F-120 Description

The Fuji Electric 2MBI25F-120 is an IGBT module rated at 1200 V and 25 A. Components of this type are commonly used in variable-frequency motor drives, servo drives, UPS systems, welding machines, induction heating and solar or wind inverters.

USComponent, a BBB A+ accredited business, helps engineers and maintenance teams source power semiconductors and industrial components, including older and hard-to-find part numbers. Please confirm ratings, package and pin-out against the manufacturer's datasheet before ordering, and request a quote for current pricing and lead time on the 2MBI25F-120.

Summary of Features

Target Applications

Fuji Electric 2MBI25F-120 is used for Inverter for Motor Drive AC and DC Servo drive amplifier Uninterruptible power supply Industrial Machines, such as Welding Machine.

Key Specifications

2MBI25F-120 is a 1,200 V, 25 A IGBT module, dual (2-in-1) configuration. Source: manufacturer datasheet.

Parameter	Value
Product type	IGBT module
Configuration	Dual (2-in-1)
Collector-emitter voltage (VCES)	1,200 V
Collector current (IC)	25 A
Datasheet	Available on this page (PDF)

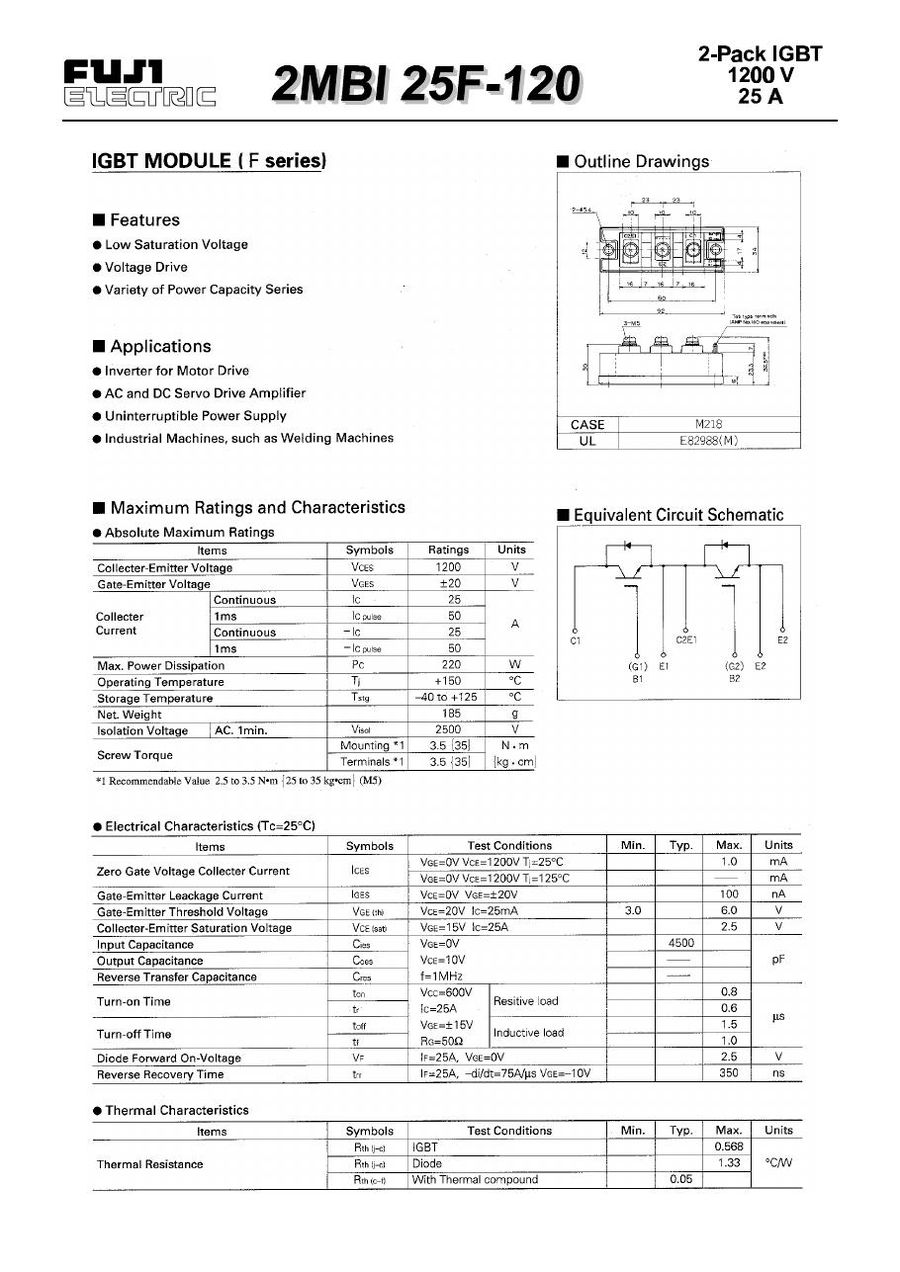

Download 2MBI25F-120 Datasheet

2MBI25F-120 PDF Datasheet
