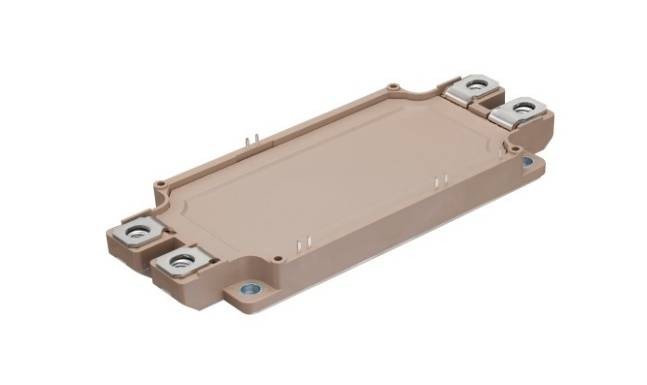

2MBI225XNA120-50 Fuji Electric - IGBT Module

2MBI225XNA120-50 Description

2MBI225XNA120-50 is a 1200 V / 225 A 2-pack (half-bridge) IGBT module from Fuji Electric, X series (7th-Generation). Typical applications: inverter for Motor Drives, AC and DC Servo Drives, Uninterruptible Power Supply Systems, Wind Turbines, PV Power Conditioning Systems.

USComponent supplies 2MBI225XNA120-50 and other Fuji Electric IGBT modules. Request a quote for price and lead time - we reply within 24 hours.

Also available as 2MBI225XNA120-81 (pre-applied TIM).

Summary of Features

Target Applications

Fuji Electric 2MBI225XNA120-50 is used for Inverter for Motor Drives, AC and DC Servo Drives, Uninterruptible Power Supply Systems, Wind Turbines, PV Power Conditioning Systems.

Key Specifications

2MBI225XNA120-50 is a 1200 V / 225 A 2-pack (half-bridge) IGBT module from Fuji Electric, X series (7th-Generation). Source: Fuji Electric datasheet and product data.

Parameter	Value
Manufacturer	Fuji Electric
Product type	IGBT module
Series	X series (7th-Generation)
Configuration	2-pack (half-bridge)
Collector-emitter voltage (VCES)	1200 V
Collector current (IC)	225 A
Package	M254 (Dual XT)
Terminal type	Solder pins
Size	62 x 150 mm
Net mass	350 g
Supply status (Fuji)	Available
Datasheet	Available on this page (PDF)
