2MBI200PB-140 Fuji Electric - IGBT power module

2MBI200PB-140 Description

2MBI200PB-140 is a 1200 V, 200 A IGBT module made by Fuji Electric. The module contains two switches in a half-bridge (2-in-1) arrangement. Modules like this do the heavy switching in motor drives, UPS systems, induction heaters and renewable-energy inverters. If you are repairing older equipment, we can usually find this exact part, including date codes that are no longer in production.

USComponent has been supplying power semiconductors since 2001, including discontinued and hard-to-find part numbers. Send us an RFQ for the 2MBI200PB-140 and we will reply with price, condition and lead time. Please check the manufacturer's datasheet to confirm ratings, package and pin-out before you order.

Summary of Features

Target Applications

Fuji Electric 2MBI200PB-140 is used for inverters and AC motor drives, servo drives, UPS systems, welding machines, induction heating, solar and wind power converters and other high-power switching equipment.

Key Specifications

2MBI200PB-140 is a 1,400 V, 200 A IGBT module, dual (2-in-1) configuration. Source: manufacturer datasheet.

Parameter	Value
Product type	IGBT module
Configuration	Dual (2-in-1)
Collector-emitter voltage (VCES)	1,400 V
Collector current (IC)	200 A

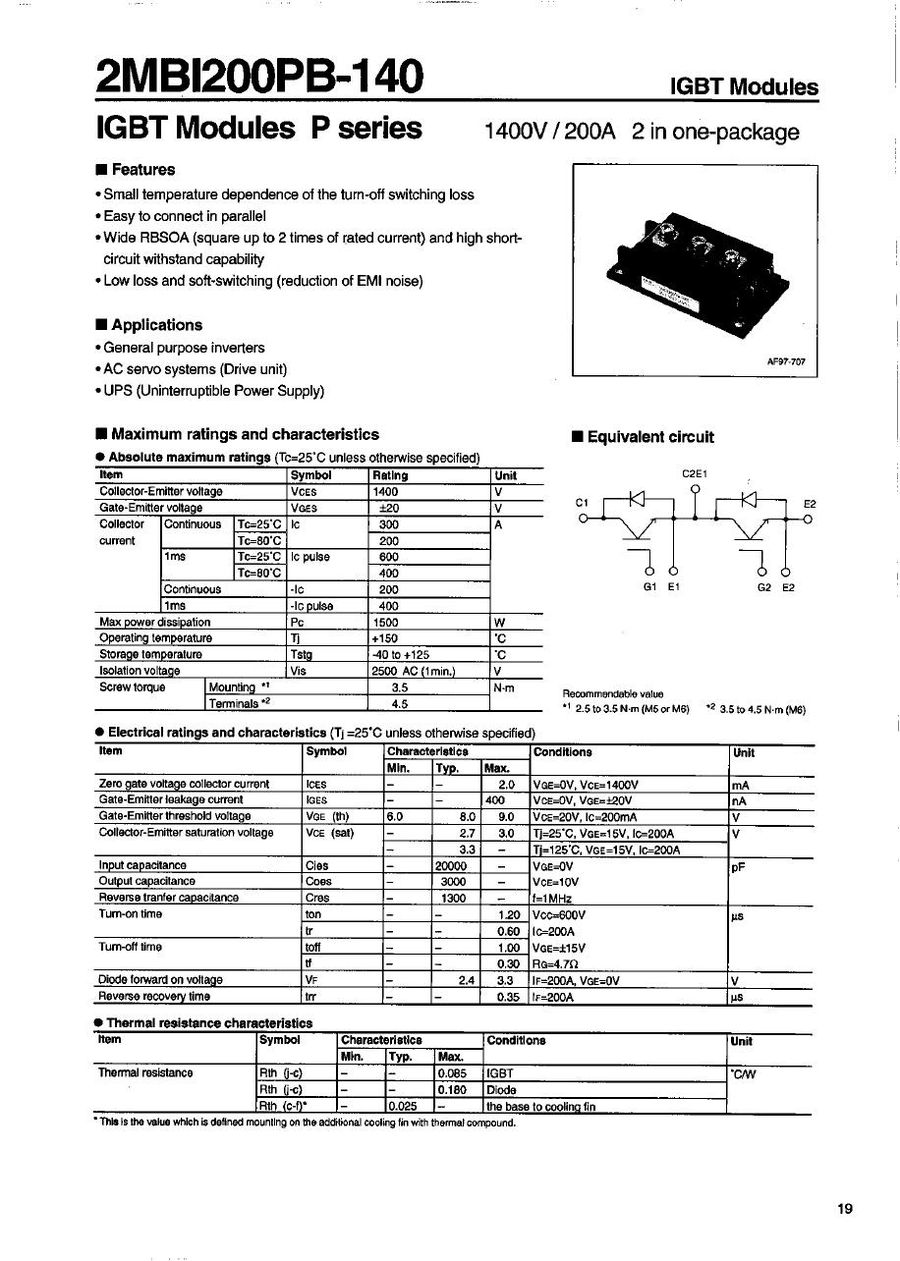

Datasheet	Available on this page (PDF)

Technical document (PDF)  |  Request a quote for 2MBI200PB-140 (reply within 24 hours)
