2MBI200J-120Fuji Electric - IGBT power module

2MBI200J-120 Description

Fuji Electric 2MBI200J-120 is an IGBT module rated at 1200 V and 200 A. Components of this type are commonly used in variable-frequency motor drives, servo drives, UPS systems, welding machines, induction heating and solar or wind inverters.

USComponent supplies power semiconductors and industrial electronic components to engineers, OEMs and maintenance teams worldwide, including legacy and hard-to-find part numbers. Please confirm ratings, package and pin-out against the manufacturer's datasheet before ordering, and request a quote for current pricing and lead time on the 2MBI200J-120.

Summary of Features

Target Applications

Fuji Electric 2MBI200J-120 is used for inverters and AC motor drives, servo drives, UPS systems, welding machines, induction heating, solar and wind power converters and other high-power switching equipment.

Key Specifications

2MBI200J-120 is a 1,200 V, 200 A IGBT module, dual (2-in-1) configuration. Source: manufacturer datasheet.

Parameter	Value
Product type	IGBT module
Configuration	Dual (2-in-1)
Collector-emitter voltage (VCES)	1,200 V
Collector current (IC)	200 A
Datasheet	Available on this page (PDF)

Download 2MBI200J-120 Datasheet

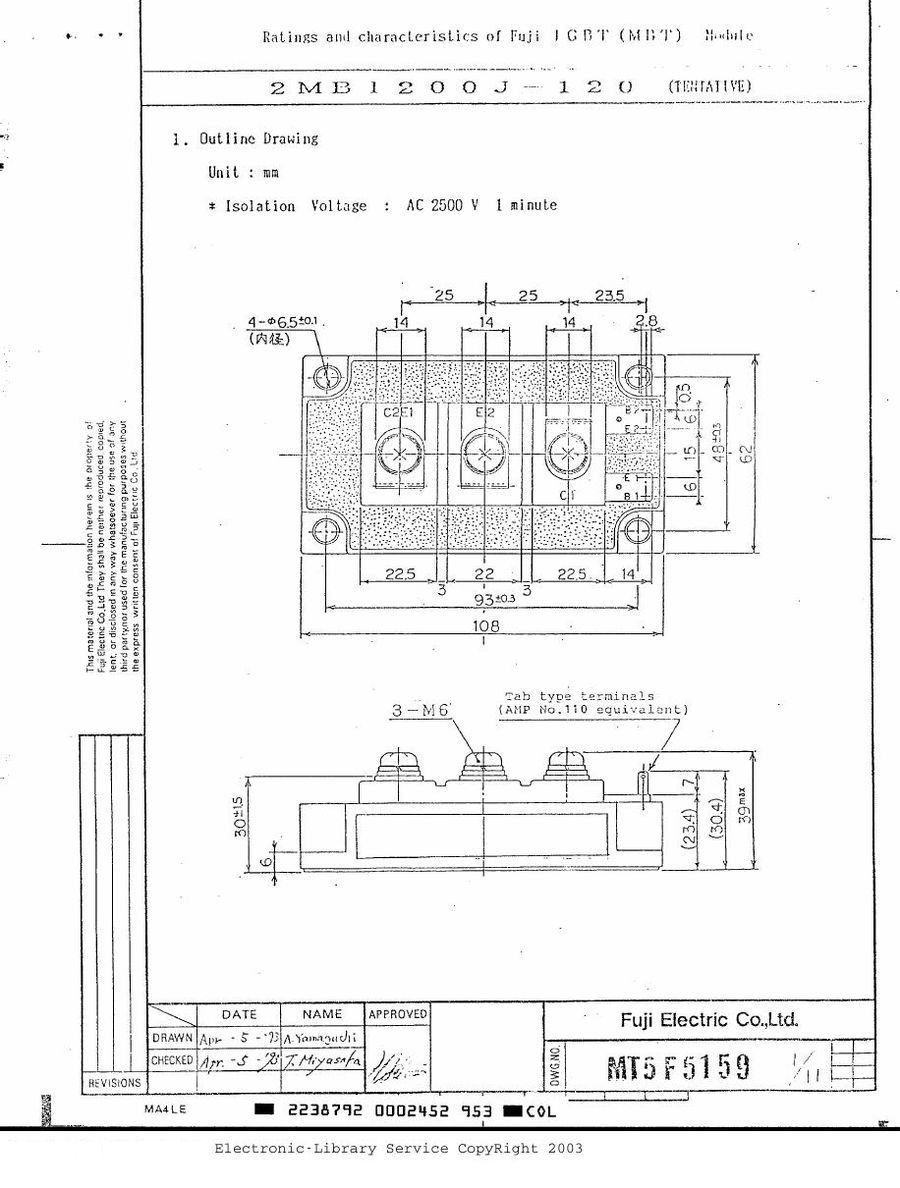

2MBI200J-120 PDF Datasheet
