2MBI1200UG-170 Fuji Electric - IGBT power module

2MBI1200UG-170 Description

Rated at 1700 V and 1200 A, the Fuji Electric 2MBI1200UG-170 is an IGBT module. The module contains two switches in a half-bridge (2-in-1) arrangement. Typical uses include motor drives, servo amplifiers, induction heating, welding power sources and grid-tie inverters.

We help engineers and repair technicians find parts like the 2MBI1200UG-170, including obsolete ones. Send a quick RFQ for current pricing and delivery. Before ordering, please confirm ratings and pin-out with the official datasheet.

Summary of Features

Target Applications

Fuji Electric 2MBI1200UG-170 is used for inverters and AC motor drives, servo drives, UPS systems, welding machines, induction heating, solar and wind power converters and other high-power switching equipment.

Key Specifications

2MBI1200UG-170 is a 1,700 V, 1200 A IGBT module, dual (2-in-1) configuration. Source: manufacturer datasheet.

Parameter	Value
Product type	IGBT module
Configuration	Dual (2-in-1)
Collector-emitter voltage (VCES)	1,700 V
Collector current (IC)	1200 A

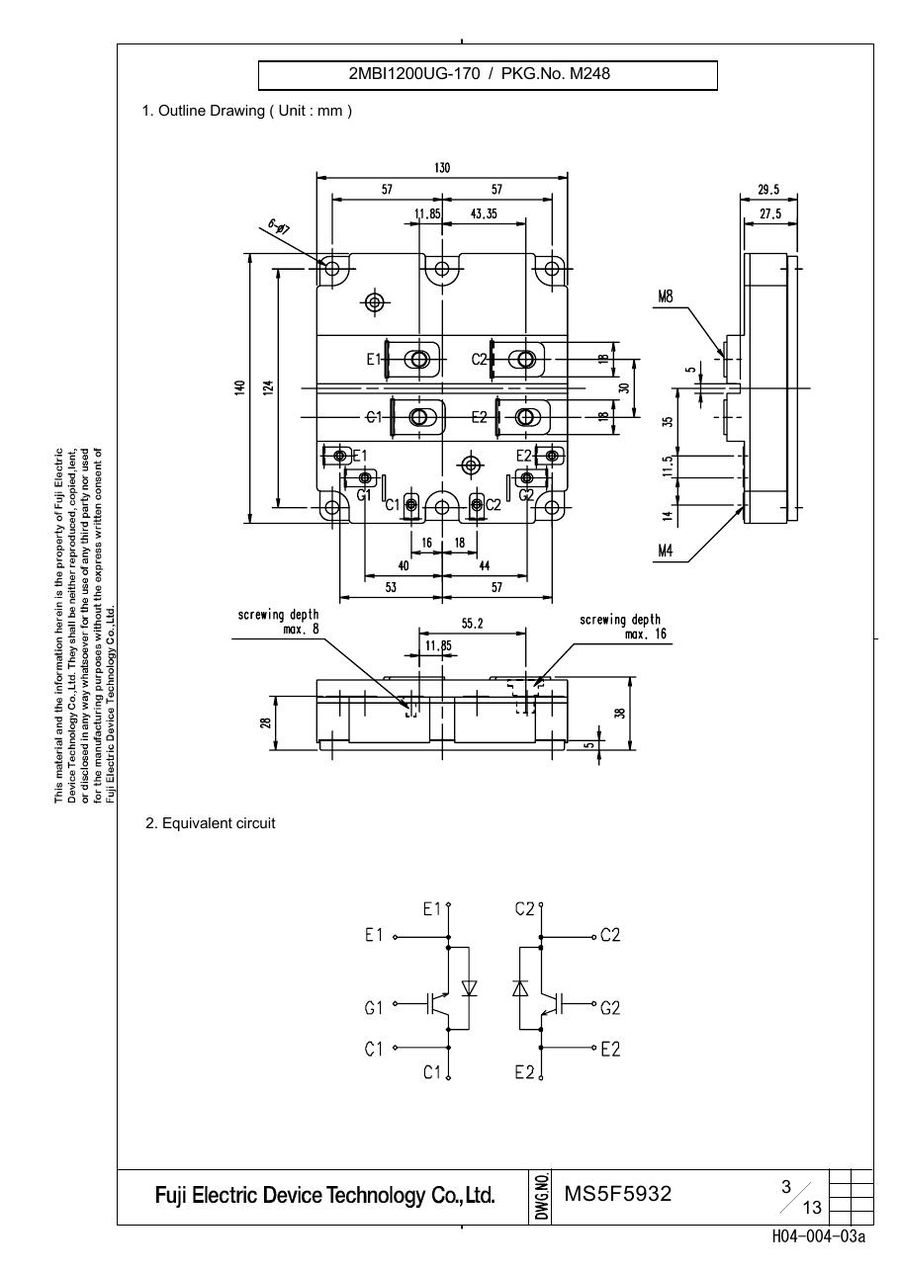

Datasheet	Available on this page (PDF)

Technical document (PDF)  |  Request a quote for 2MBI1200UG-170 (reply within 24 hours)
