2MBI100NC-120 Fuji Electric - IGBT Module

2MBI100NC-120 Description

2MBI100NC-120 is a 1200 V, 100 A IGBT module made by Fuji Electric. Inside, it has two switches in a half-bridge (2-in-1) arrangement. Engineers use it mainly in the inverter section of motor drives, as well as in UPS, welding and power-conversion equipment.

Looking for a replacement 2MBI100NC-120? USComponent can quote new and hard-to-find stock and ships worldwide. Request a quote for pricing and lead time, and double-check the datasheet to make sure it fits your application.

Summary of Features

Target Applications

Fuji Electric 2MBI100NC-120 is used for Inverter for Motor drive, AC and DC Servo drive amplifier, Uninterruptible power supply and Industrial machines such as Welding machines.

Key Specifications

2MBI100NC-120 is a 1,200 V, 100 A IGBT module, dual (2-in-1) configuration. Source: manufacturer datasheet.

Parameter	Value
Product type	IGBT module
Configuration	Dual (2-in-1)
Collector-emitter voltage (VCES)	1,200 V
Collector current (IC)	100 A

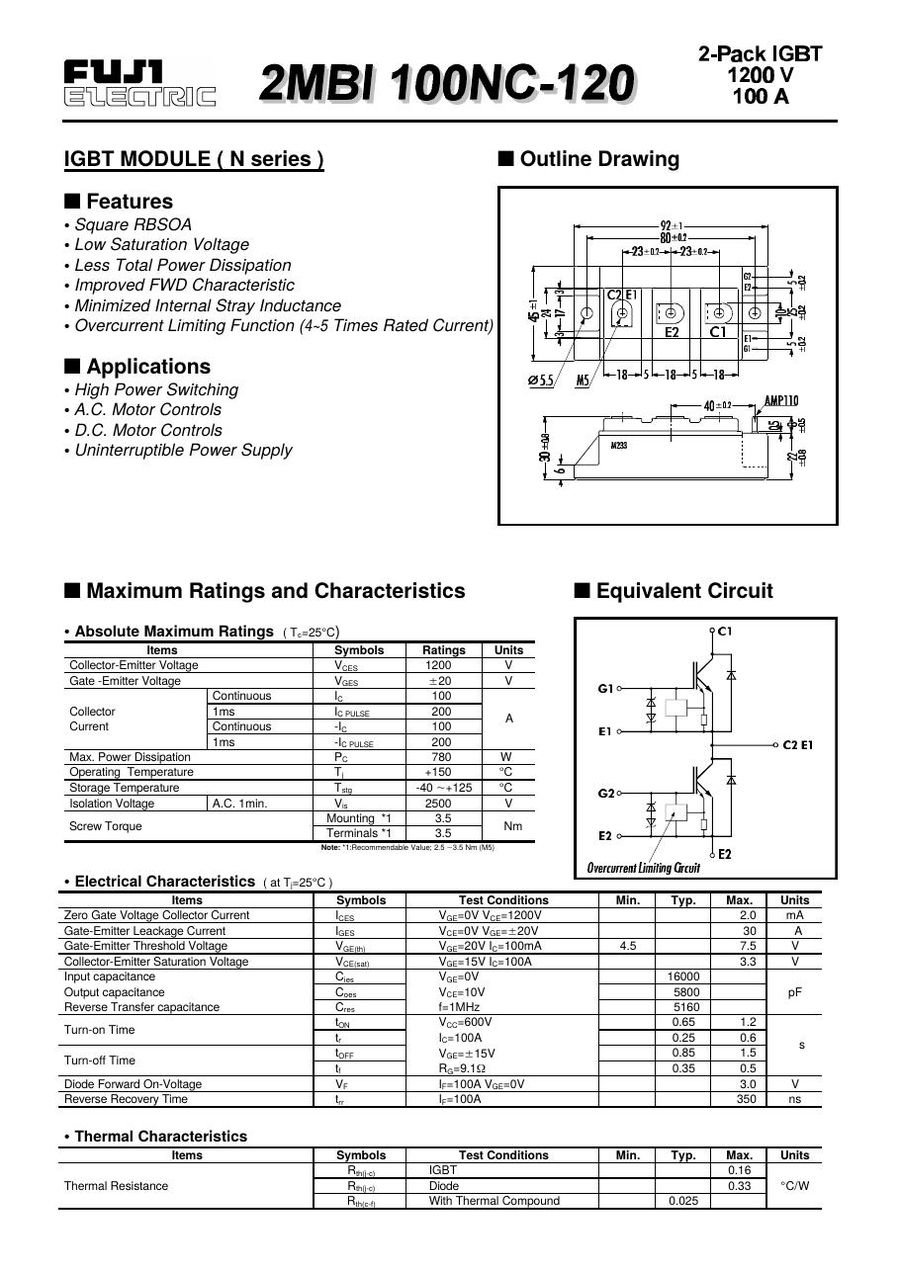

Datasheet	Available on this page (PDF)

2MBI100NC-120 Video

Technical document (PDF)  |  Request a quote for 2MBI100NC-120 (reply within 24 hours)
