2DI50Z-100Fuji Electric - Power Transistor Module

2DI50Z-100 Description

The Fuji Electric 2DI50Z-100 is a Darlington transistor module rated at 1000 V and 50 A, available from USComponent. Components of this type are commonly used in motor drives, UPS systems and power supplies; transistor modules of this type are largely superseded by IGBTs in new designs but remain essential for maintaining installed equipment.

USComponent supplies power semiconductors and industrial electronic components to engineers, OEMs and maintenance teams worldwide, including legacy and hard-to-find part numbers. Please confirm ratings, package and pin-out against the manufacturer's datasheet before ordering, and request a quote for current pricing and lead time on the 2DI50Z-100.

Target Applications

Fuji Electric 2DI50Z-100 is used for High Power Switching, AC Motor Controls, DC Motor Controls and Uninterruptible Power Supply.

Key Specifications

Manufacturer	Fuji Electric
Configuration	2-pack power transistor (Darlington) module with free-wheeling diode, insulated type

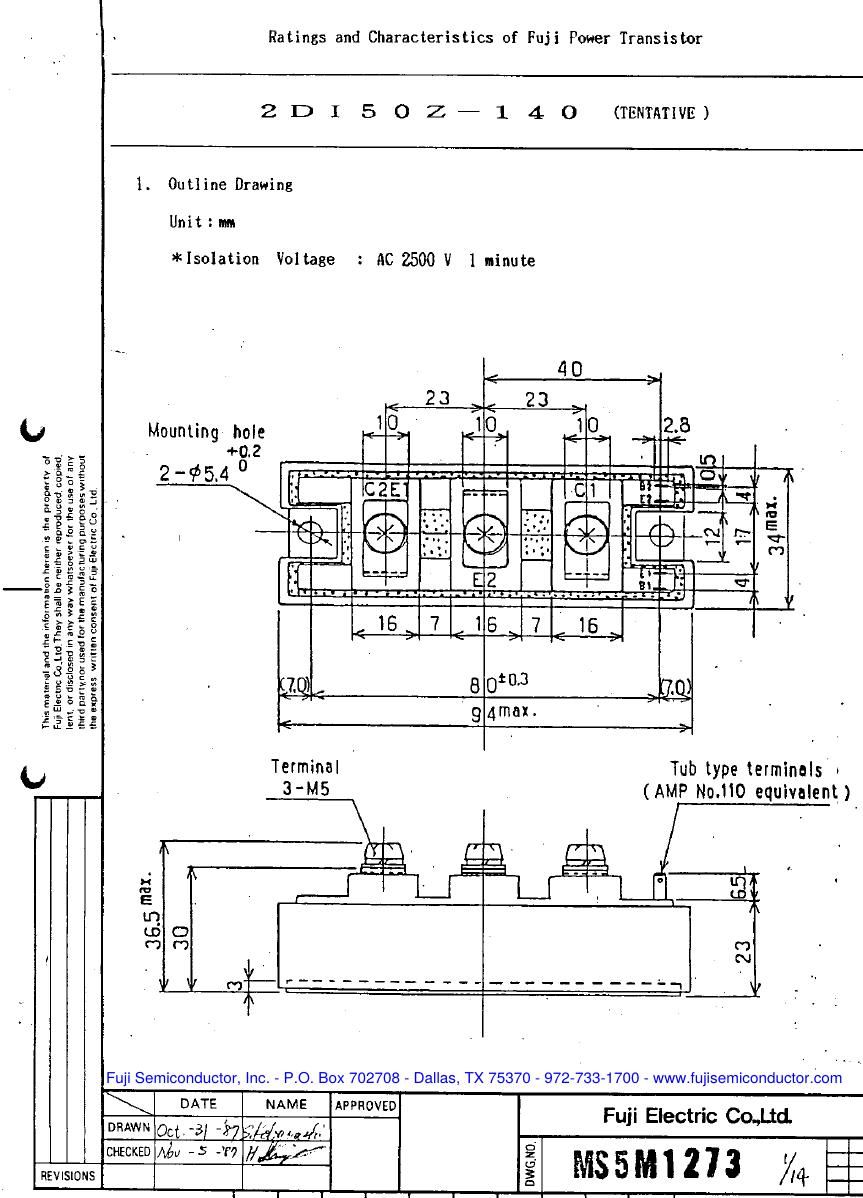

Package	Case M204, UL E82988
VCBO / VCEO	1000 V / 1000 V
IC	50 A (DC)
ICP	100 A (1 ms)
hFE min.	100 @ 50 A, VCE = 5 V
VCE(sat) max.	2.8 V @ 50 A
Collector power dissipation	400 W (one transistor)
Isolation voltage	AC 2500 V (1 min)
Screw torque	M5: 25 - 30 kg·cm recommended
Weight	175 g
