2DI50A-120Fuji Electric - Power Transistor Module

2DI50A-120 Description

Fuji Electric 2DI50A-120 is a Darlington transistor module rated at 1200 V and 50 A. Components of this type are commonly used in motor drives, UPS systems and power supplies; transistor modules of this type are largely superseded by IGBTs in new designs but remain essential for maintaining installed equipment.

USComponent supplies power semiconductors and industrial electronic components to engineers, OEMs and maintenance teams worldwide, including legacy and hard-to-find part numbers. Please confirm ratings, package and pin-out against the manufacturer's datasheet before ordering, and request a quote for current pricing and lead time on the 2DI50A-120.

Summary of Features

Target Applications

Fuji Electric 2DI50A-120 is used for High Power Switching, Uninterruptible Power Supply, AC Motor Controls and Welding machines.

Key Specifications

2DI50A-120 is a 1,200 V, 50 A power transistor (bipolar Darlington) module, dual configuration. Source: manufacturer datasheet.

Parameter	Value
Product type	Power transistor (bipolar Darlington) module
Configuration	Dual
Collector-emitter voltage (VCES)	1,200 V
Collector current (IC)	50 A
Datasheet	Available on this page (PDF)

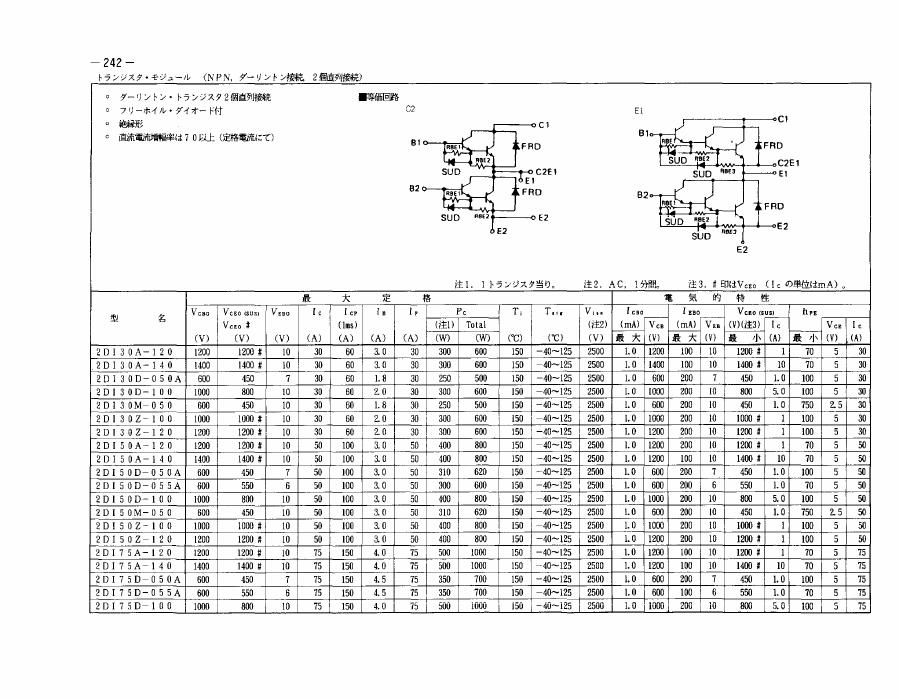

Download 2DI50A-120 Datasheet

2DI50A-120 PDF Datasheet
