2DI240A-055 Fuji Electric - Bipolar Transistor Module

2DI240A-055 Description

2DI240A-055 is a 550 V, 240 A Darlington transistor module made by Fuji Electric. It is built with two switches in a half-bridge (2-in-1) arrangement. You will mostly see it in older AC drives, servo amplifiers and UPS systems, where a like-for-like replacement keeps the machine running.

USComponent has sourced power semiconductors for maintenance teams and OEMs since 2001. For price and availability of the 2DI240A-055, send us a request for quote. Please confirm the specifications against the manufacturer's datasheet before purchase.

Summary of Features

Target Applications

Fuji Electric 2DI240A-055 is used for Motor Control Applications.

Key Specifications

2DI240A-055 is a 550 V, 240 A power transistor (bipolar Darlington) module, dual configuration. Source: manufacturer datasheet.

Parameter	Value
Product type	Power transistor (bipolar Darlington) module
Configuration	Dual
Collector-emitter voltage (VCES)	550 V
Collector current (IC)	240 A

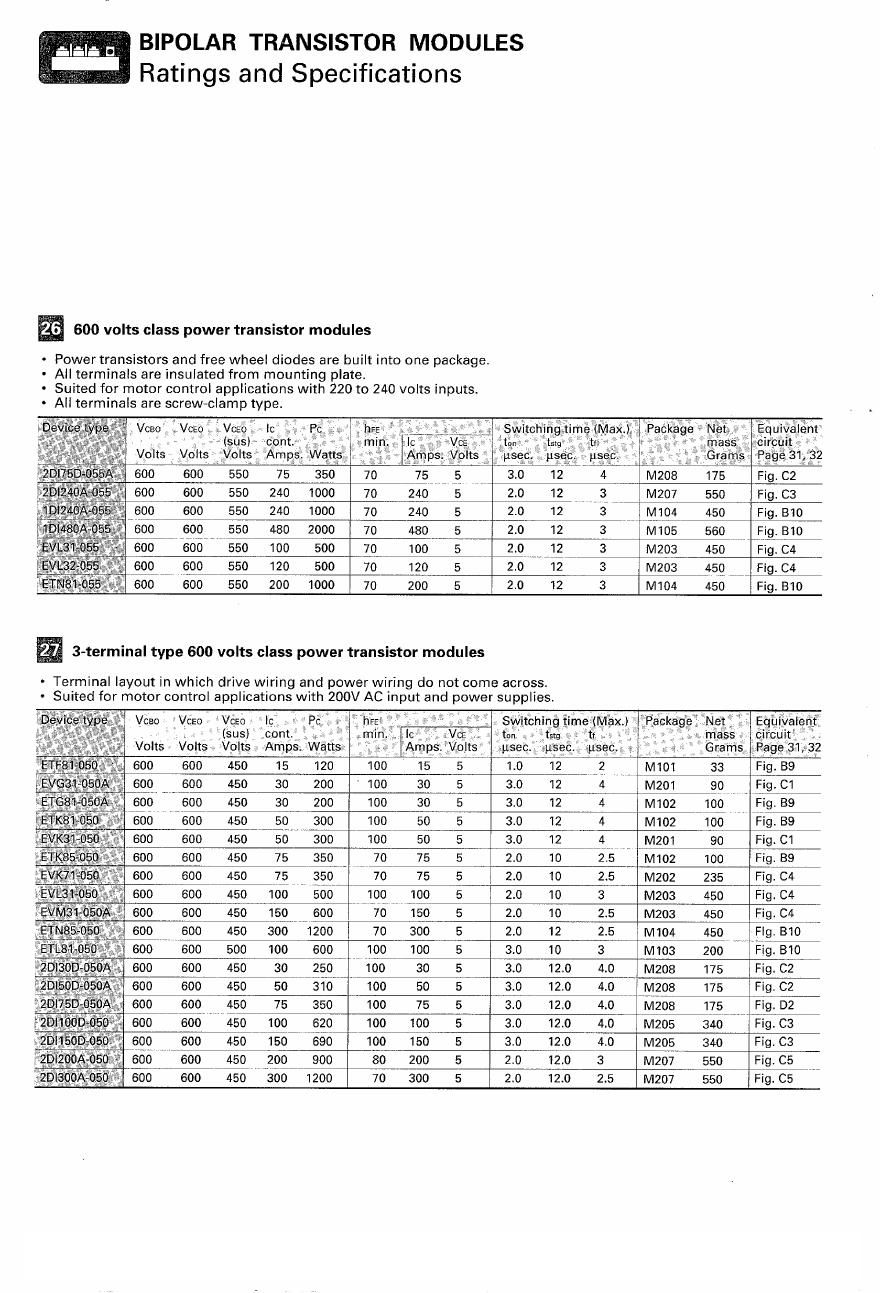

Datasheet	Available on this page (PDF)

Technical document (PDF)  |  Request a quote for 2DI240A-055 (reply within 24 hours)
