1DI240A-055 Fuji Electric - Bipolar Transistor Module

1DI240A-055 Description

Fuji Electric makes the 1DI240A-055, a 600 V, 240 A Darlington transistor module. It is built with a single switch with its freewheeling diode (1-in-1). It was a workhorse in drives and power supplies before IGBTs took over, and it is still needed to repair that equipment.

USComponent has sourced power semiconductors for maintenance teams and OEMs since 2001. For price and availability of the 1DI240A-055, send us a request for quote. Please confirm the specifications against the manufacturer's datasheet before purchase.

Summary of Features

Target Applications

Fuji Electric 1DI240A-055 is used for High Power Switching AC Motor Controls DC Motor Controls Uninterruptible Power Supply.

Key Specifications

1DI240A-055 is a 550 V, 240 A power transistor (bipolar Darlington) module, single configuration. Source: manufacturer datasheet.

Parameter	Value
Product type	Power transistor (bipolar Darlington) module
Configuration	Single
Collector-emitter voltage (VCES)	550 V
Collector current (IC)	240 A

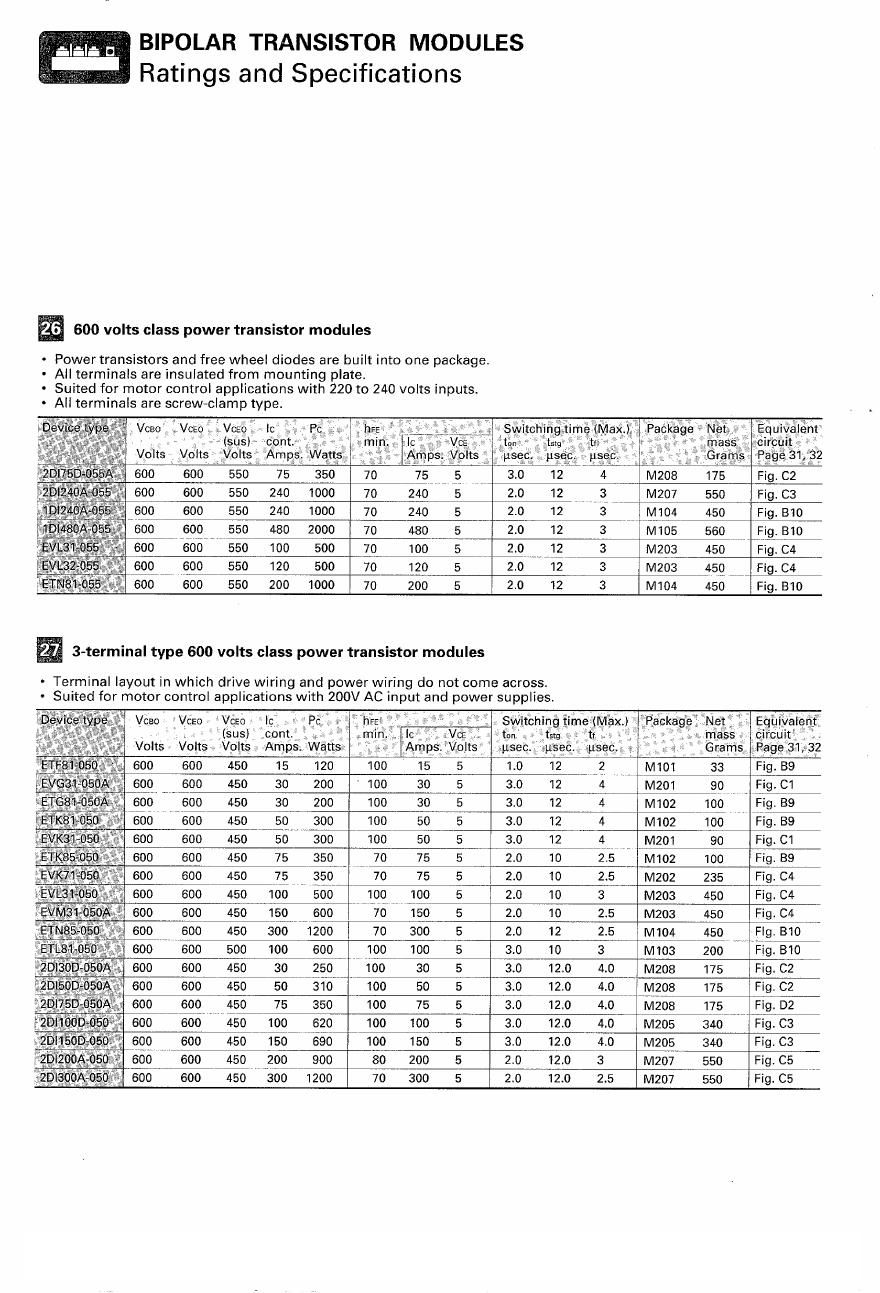

Datasheet	Available on this page (PDF)

Technical document (PDF)  |  Request a quote for 1DI240A-055 (reply within 24 hours)
