1MBK50D-060S Fuji Electric - IGBT Module

1MBK50D-060S Description

1MBK50D-060S is a molded discrete IGBT with FWD from Fuji Electric, rated 600V, 50A. Typical applications: Inverter for motor drive, AC and DC servo drive amplifier and uninterruptible power supply.

USComponent supplies 1MBK50D-060S and other power semiconductors and power supplies, including discontinued types. Request a quote for price and lead time - we reply within 24 hours.

Summary of Features

Target Applications

Fuji Electric 1MBK50D-060S is used for Inverter for motor drive, AC and DC servo drive amplifier and uninterruptible power supply.

Key Specifications

1MBK50D-060S is a molded discrete IGBT with FWD from Fuji Electric, rated 600V, 50A. Source: manufacturer datasheet.

Parameter	Value
Manufacturer	Fuji Electric
Collector-emitter voltage VCES	600 V
Collector current IC (Tc = 100 °C)	50 A
IC (Tc = 25 °C)	65 A
IC pulse (1 ms)	150 A
VCE(sat) typ. / max. (IC = 50 A)	2.4 V / 2.9 V
Max. power dissipation (IGBT)	200 W
Max. junction temperature	150 °C

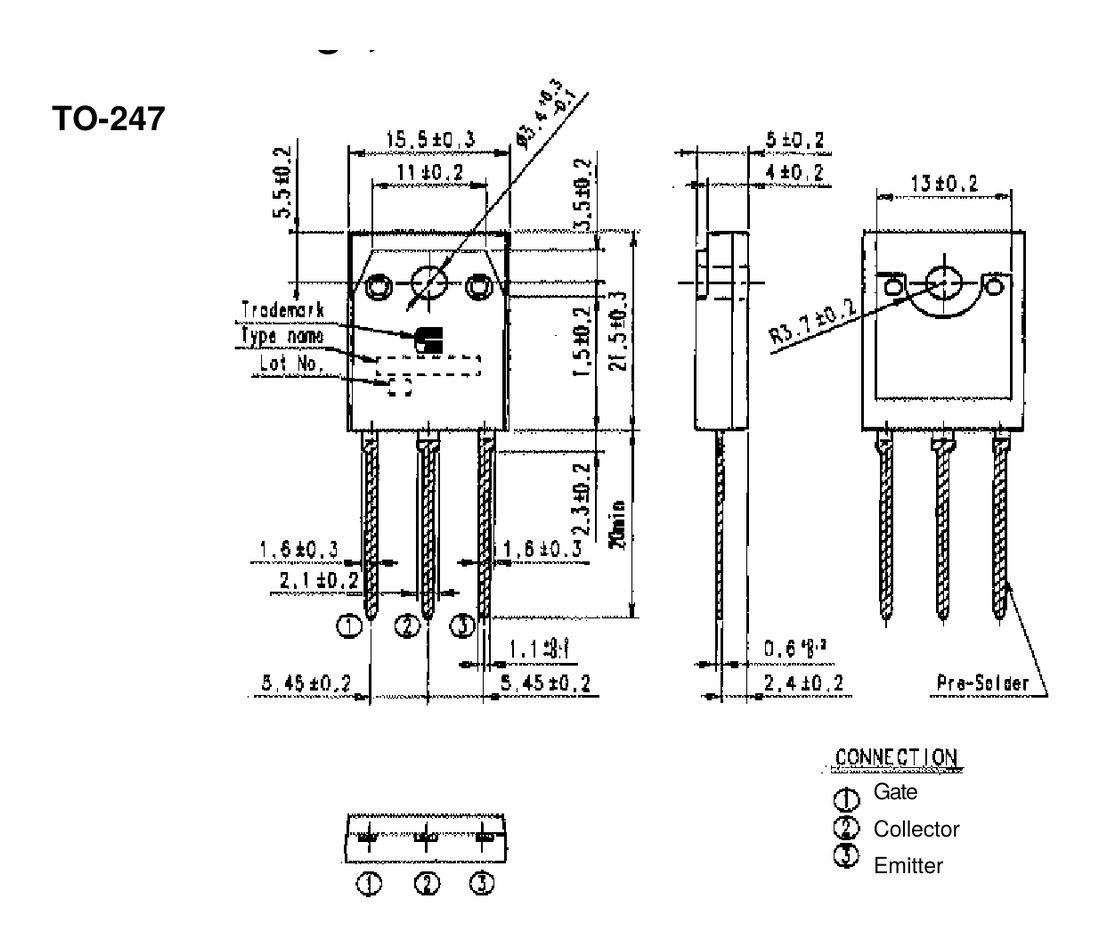

Package	TO-247
Datasheet	Available on this page (PDF)

Technical document (PDF)  |  Request a quote for 1MBK50D-060S (reply within 24 hours)
