1MBI900VXA-120PC-50 Fuji Electric - IGBT Module

Other versions: 1MBI900VXA-120PC-54

Category: IGBT Modules

Specifications: 1200V, 900A

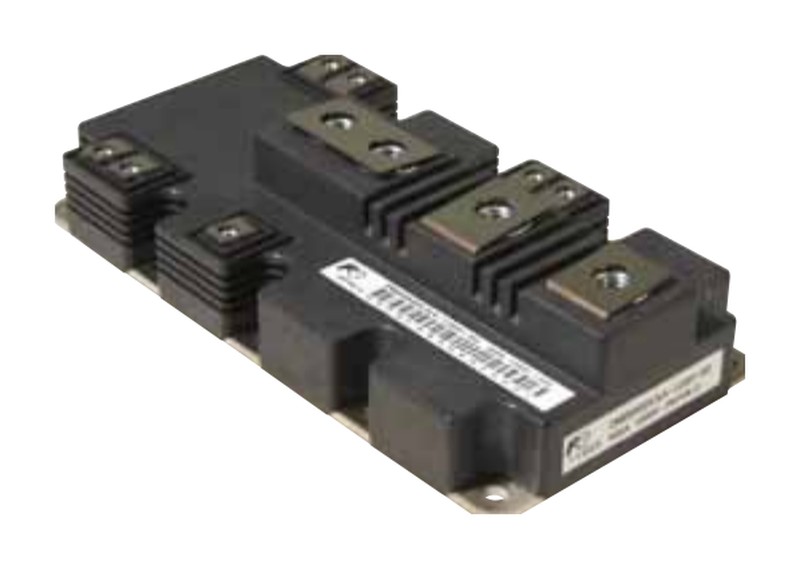

1MBI900VXA-120PC-50 Fuji Electric IGBT Module

We beat competitor's price with faster delivery.

For 6 pieces or more, submit your inquiry here, email to sales@uscomponent.com or call 1-281-968-0718

1MBI900VXA-120PC-50 Description

1MBI900VXA-120PC-50 is a 1,200 V / 900 A 1-pack chopper IGBT module from Fuji Electric, V series. Datasheet ratings: IC 900 A continuous at Tc = 100 °C (1,200 A at 25 °C), 1,800 A pulse, VCE(sat) 1.75 V typ. at 900 A, 4,000 VAC isolation. Package PrimePACK™ M271, screw terminals, 89 x 172 mm. Typical applications: NPC 3-level Inverter; Inverter dynamic braking (DB) for Motor Drive; AC and DC Servo Drive Amplifier (DB); Active PFC; Industrial machines.

USComponent supplies 1MBI900VXA-120PC-50 and other Fuji Electric IGBT modules, including discontinued types. Request a quote for price and lead time - we reply within 24 hours.

Summary of Features

1MBI900VXA-120PC-50 is a 1,200 V / 900 A 1-pack chopper IGBT module from Fuji Electric, V series.

  • 1,200 V / 900 A 1-pack chopper IGBT module, V series
  • High speed switching
  • Voltage drive
  • Low Inductance module structure
  • VCE(sat) 1.75 V typ. / 2.20 V max. at 900 A, Tj = 25 °C (terminal)
  • Tj 175 °C, Tjop 150 °C
  • Isolation voltage 4,000 VAC
  • PrimePACK™ M271, screw terminals

Target Applications

Fuji Electric 1MBI900VXA-120PC-50 is used for NPC 3-level Inverter, Inverter dynamic braking (DB) for Motor Drive, AC and DC Servo Drive Amplifier (DB), Active PFC and Industrial machines.

Key Specifications

1MBI900VXA-120PC-50 is a 1,200 V / 900 A 1-pack chopper IGBT module from Fuji Electric, V series. Source: Fuji Electric datasheet (June 2015).

ParameterValue
ManufacturerFuji Electric
Product typeIGBT module
SeriesV series (6th generation)
Configuration1-pack (1 in one package, chopper)
Collector-emitter voltage (VCES)1,200 V
Collector current IC (continuous, Tc = 25 °C)1,200 A
Collector current IC (continuous, Tc = 100 °C)900 A
Collector current IC pulse (1 ms)1,800 A
Collector power dissipation (Pc, 1 device)5,100 W
VCE(sat) (terminal), IC = 900 A, VGE = 15 V, Tj = 25 °C1.75 V typ. / 2.20 V max.
Gate-emitter threshold voltage VGE(th)6.0 / 6.5 / 7.0 V (min. / typ. / max.)
Junction temperature (Tj)175 °C
Operating junction temperature (Tjop, under switching)150 °C
Storage temperature (Tstg)-40 to +150 °C
Isolation voltage (Viso, AC 1 min)4,000 VAC
Screw torque, mountingM5: 3.0 - 6.0 N·m (recommended)
Screw torque, main terminalsM8: 8.0 - 10.0 N·m (recommended)
Screw torque, sense terminalsM4: 1.8 - 2.1 N·m (recommended)
PackagePrimePACK™ M271
TerminalsScrew terminals
Size89 x 172 mm
Weight (typ.)850 g
Supply status (Fuji)Available
Applications (datasheet)NPC 3-level Inverter; Inverter dynamic braking (DB) for Motor Drive; AC and DC Servo Drive Amplifier (DB); Active PFC; Industrial machines
DatasheetAvailable on this page (PDF)

Technical document (PDF)  |  Request a quote for 1MBI900VXA-120PC-50 (reply within 24 hours)
