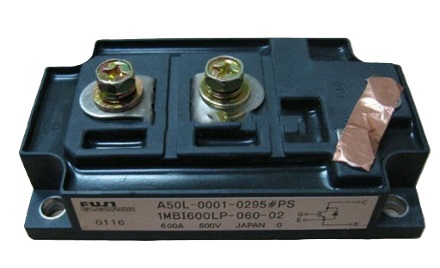

1MBI600LP-060-02 Fuji Electric - IGBT Module

1MBI600LP-060-02 Description

The 1MBI600LP-060-02 from Fuji Electric is an IGBT module with a 600 V / 600 A rating. Inside, it has a single switch with its freewheeling diode (1-in-1). Modules like this do the heavy switching in motor drives, UPS systems, induction heaters and renewable-energy inverters. If you are repairing older equipment, we can usually find this exact part, including date codes that are no longer in production.

USComponent has been supplying power semiconductors since 2001, including discontinued and hard-to-find part numbers. Send us an RFQ for the 1MBI600LP-060-02 and we will reply with price, condition and lead time. Please check the manufacturer's datasheet to confirm ratings, package and pin-out before you order.

Summary of Features

Target Applications

Fuji Electric 1MBI600LP-060-02 is used for motor drives and inverters, servo amplifiers, UPS systems, welding machines and other industrial power switching equipment.

Key Specifications

1MBI600LP-060-02 is a 600 V, 600 A IGBT module, single (1-in-1) configuration. Source: manufacturer datasheet.

Parameter	Value
Product type	IGBT module
Configuration	Single (1-in-1)
Collector-emitter voltage (VCES)	600 V
Collector current (IC)	600 A
Datasheet	Available on this page (PDF)
