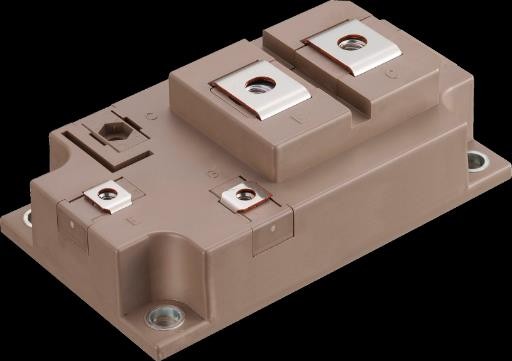

1MBI400VF-120-50 Fuji Electric - IGBT Module

1MBI400VF-120-50 Description

1MBI400VF-120-50 is a 1200 V / 400 A 1-pack (single switch) IGBT module from Fuji Electric, V series (6th-Generation). Typical applications: inverter for Motor Drives, AC and DC Servo Drive Amplifier, Uninterruptible Power Supply, Industrial machines, Welding machines.

USComponent supplies 1MBI400VF-120-50 and other Fuji Electric IGBT modules. Request a quote for price and lead time - we reply within 24 hours.

Summary of Features

Target Applications

Fuji Electric 1MBI400VF-120-50 is used for Inverter for Motor Drives, AC and DC Servo Drive Amplifier, Uninterruptible Power Supply, Industrial machines, Welding machines.

Key Specifications

1MBI400VF-120-50 is a 1200 V / 400 A 1-pack (single switch) IGBT module from Fuji Electric, V series (6th-Generation). Source: Fuji Electric datasheet and product data.

Parameter	Value
Manufacturer	Fuji Electric
Product type	IGBT module
Series	V series (6th-Generation)
Configuration	1-pack (single switch)
Collector-emitter voltage (VCES)	1200 V
Collector current (IC)	400 A
Package	M153 (Standard)
Terminal type	Screw terminals
Size	62 x 108 mm
Net mass	380 g
Supply status (Fuji)	Available
Datasheet	Available on this page (PDF)

Technical document (PDF)  |  Request a quote for 1MBI400VF-120-50 (reply within 24 hours)
