1MBI400S-120 Fuji Electric - IGBT Module

1MBI400S-120 Description

1MBI400S-120 is a 1200 V, 400 A IGBT module made by Fuji Electric. The module contains a single switch with its freewheeling diode (1-in-1). Engineers use it mainly in the inverter section of motor drives, as well as in UPS, welding and power-conversion equipment. Production of many older modules has ended, but we keep sourcing them for repair and maintenance customers.

USComponent has been supplying power semiconductors since 2001, including discontinued and hard-to-find part numbers. Send us an RFQ for the 1MBI400S-120 and we will reply with price, condition and lead time. Please check the manufacturer's datasheet to confirm ratings, package and pin-out before you order.

Summary of Features

Target Applications

Fuji Electric 1MBI400S-120 is used for inverters and AC motor drives, servo drives, UPS systems, welding machines, induction heating, solar and wind power converters and other high-power switching equipment.

Key Specifications

1MBI400S-120 is a 1,200 V, 400 A IGBT module, single (1-in-1) configuration. Source: manufacturer datasheet.

Parameter	Value
Product type	IGBT module
Configuration	Single (1-in-1)
Collector-emitter voltage (VCES)	1,200 V
Collector current (IC)	400 A

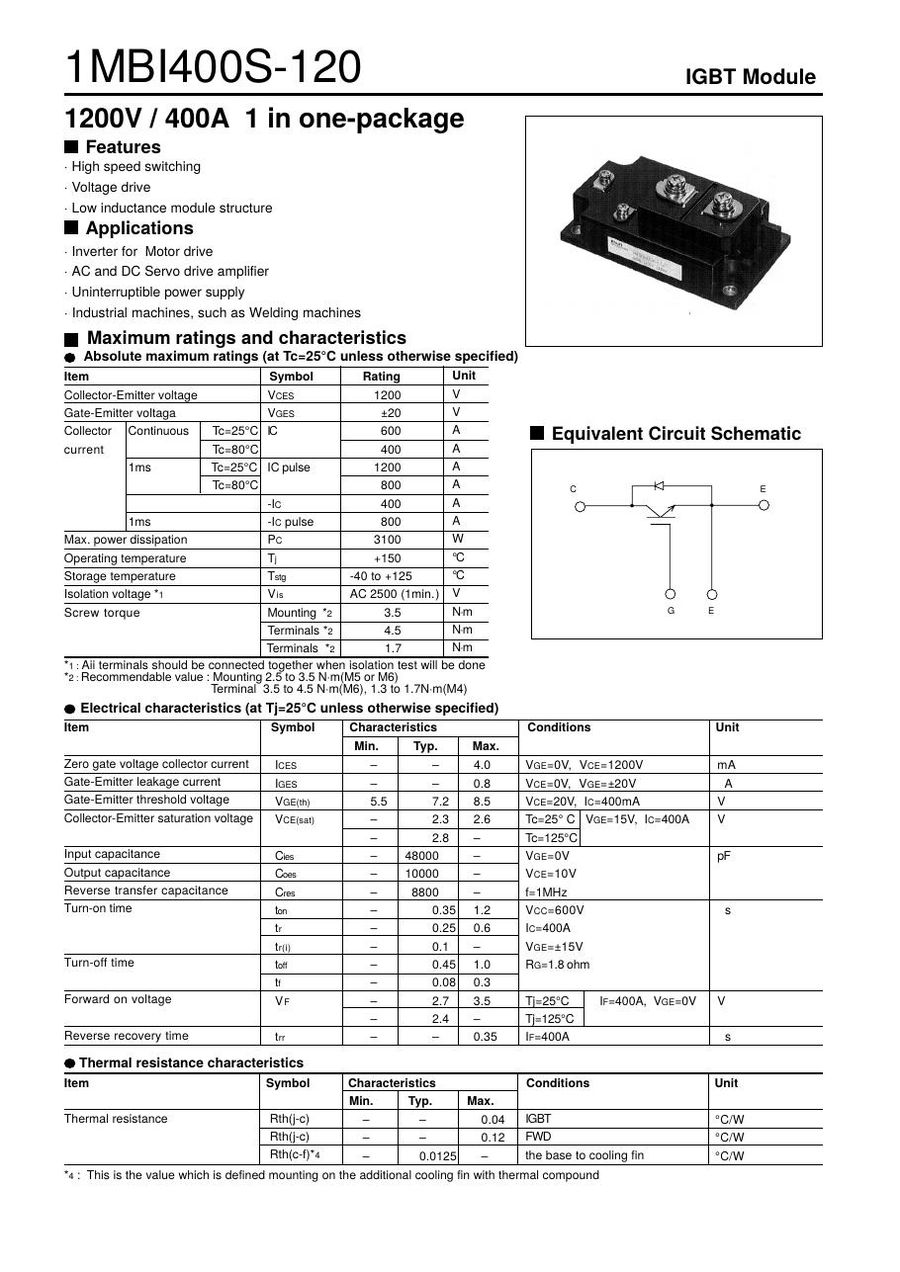

Datasheet	Available on this page (PDF)

Technical document (PDF)  |  Request a quote for 1MBI400S-120 (reply within 24 hours)
