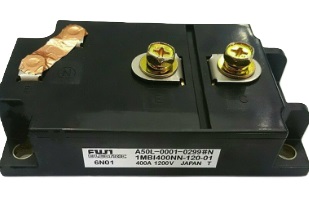

1MBI400NN-120 Fuji Electric - IGBT power module

1MBI400NN-120 Description

Rated at 1200 V and 400 A, the Fuji Electric 1MBI400NN-120 is an IGBT module. It is built with a single switch with its freewheeling diode (1-in-1). Typical uses include motor drives, servo amplifiers, induction heating, welding power sources and grid-tie inverters.

USComponent is a BBB A+ accredited distributor that specializes in power modules and industrial components, new and legacy. Ask us for a quote on the 1MBI400NN-120; we ship worldwide. Please verify the ratings and package against the manufacturer's datasheet first.

Target Applications

Fuji Electric 1MBI400NN-120 is used for inverters and AC motor drives, servo drives, UPS systems, welding machines, induction heating, solar and wind power converters and other high-power switching equipment.

Key Specifications

Manufacturer	Fuji Electric
Configuration	Single IGBT module (1-in-1), N-Series
VCES	1200 V
IC	400 A (continuous)
IC pulse	800 A (1 ms)
VCE(sat) max.	3.3 V @ 400 A
Isolation voltage	AC 2500 V (1 min)
Terminal torque	4.5 N·m

1MBI400NN-120 Video

Technical document (PDF)  |  Request a quote for 1MBI400NN-120 (reply within 24 hours)
