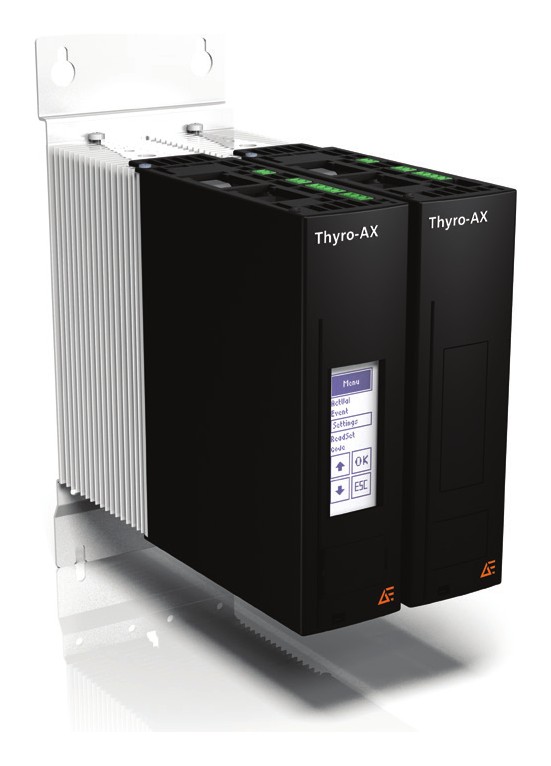

2A600-130HRLP2 AEG - Thyro Power Controller
2A600-130HRLP2 Description
The 2A600-130HRLP2 from AEG is a thyristor power controller. Thyro power controllers like this regulate electric heaters, furnaces, infrared emitters and transformer loads.
USComponent (Young & New Century LLC) supplies power modules, thyristors, diodes and other industrial components, including legacy parts. Contact us for a quote on the 2A600-130HRLP2, and please confirm ratings against the datasheet before ordering.
Target Applications
AEG 2A600-130HRLP2 is used for power control of electrical heating in industrial furnaces and ovens, glass manufacturing equipment, plastic extruders and presses, automotive paint drying lines, chemical pipe trace heating, packaging shrink tunnels and infrared drying in printing machines.
Key Specifications
AEG 2A600-130HRLP2 is a Thyro-AX two-phase (for three-phase loads in economy circuit) digital thyristor (SCR) power controller, 600 V, 130 A, with integrated semiconductor fuse (H), fault relay (R), load monitoring (L) and power control (P). Source: AEG / Advanced Energy Thyro-AX datasheet (ENG-Thyro-AX-231-01).
| Parameter | Value |
|---|---|
| Ratings | |
| Series | Thyro-AX (H RLP2) |
| Phase version | 2A: two-phase (for three-phase loads in economy circuit) |
| Rated voltage | 600 V (operating range 24-660 V) |
| Rated current | 130 A |
| Mains frequency | 47-63 Hz |
| Cooling | Natural convection |
| Load types | Ohmic loads (Rwarm/Rcold up to 6, limitation 3 x Inom) and transformer loads |
| Functions | |
| Operating modes | TAKT, SWITCH |
| Control types | Ueff / U²eff / Ieff / I²eff / P |
| Set point inputs | 2 analog set point inputs (0(4)-20 mA, 0(1)-5 V, 0(2)-10 V), 2 digital inputs, 1 switch input |
| Load monitoring | Adjustable response threshold |
| Current limitation | Ieff; current peak limitation to 3 x Inom in VAR mode |
| Relay output | Changeover, max. 250 V, 4 A, 180 W, 1500 VA |
| Analog outputs | 3, each 0(2)-10 V / 0(4)-20 mA |
| External supply | 85-265 V (47-63 Hz) |
| Integrated fuse | Semiconductor fuse (H) |
| Bus interface (optional module) | PROFIBUS DPV1, PROFINET, Modbus RTU/TCP, CANopen, DeviceNet, EtherNet/IP |
Technical document (PDF) | Request a quote for 2A600-130HRLP2 (reply within 24 hours)
