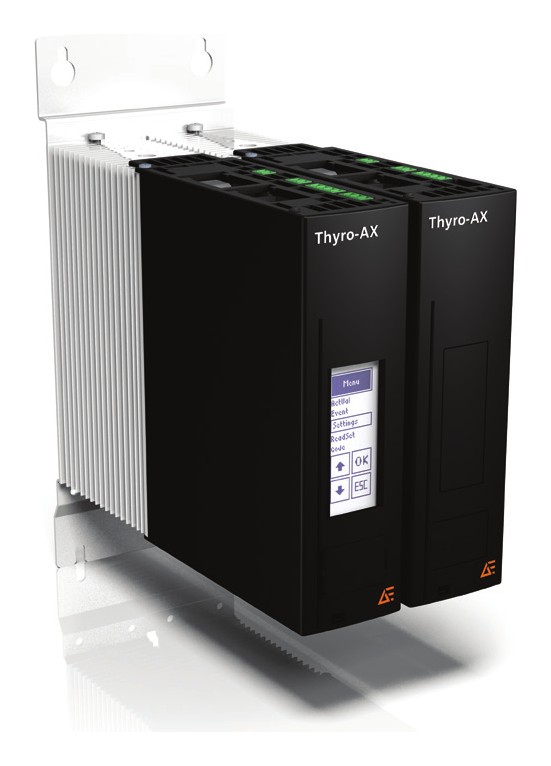

2A600-100HFRLP2 AEG - Thyro Power Controller
2A600-100HFRLP2 Description
The 2A600-100HFRLP2 from AEG is a thyristor power controller. Typical applications are industrial heating, furnace control, drying lines and infrared heating systems.
Looking for a replacement 2A600-100HFRLP2? USComponent can quote new and hard-to-find stock and ships worldwide. Request a quote for pricing and lead time, and double-check the datasheet to make sure it fits your application.
Target Applications
AEG 2A600-100HFRLP2 is used for power control of electrical heating in industrial furnaces and ovens, glass manufacturing equipment, plastic extruders and presses, automotive paint drying lines, chemical pipe trace heating, packaging shrink tunnels and infrared drying in printing machines.
Key Specifications
AEG 2A600-100HFRLP2 is a Thyro-AX two-phase (for three-phase loads in economy circuit) digital thyristor (SCR) power controller, 600 V, 100 A, with integrated semiconductor fuse (H), fault relay (R), load monitoring (L) and power control (P), forced ventilation (F). Source: AEG / Advanced Energy Thyro-AX datasheet (ENG-Thyro-AX-231-01).
| Parameter | Value |
|---|---|
| Ratings | |
| Series | Thyro-AX (H RLP2) |
| Phase version | 2A: two-phase (for three-phase loads in economy circuit) |
| Rated voltage | 600 V (operating range 24-660 V) |
| Rated current | 100 A |
| Mains frequency | 47-63 Hz |
| Cooling | Forced ventilation (fan) |
| Load types | Ohmic loads (Rwarm/Rcold up to 6, limitation 3 x Inom) and transformer loads |
| Functions | |
| Operating modes | TAKT, SWITCH |
| Control types | Ueff / U²eff / Ieff / I²eff / P |
| Set point inputs | 2 analog set point inputs (0(4)-20 mA, 0(1)-5 V, 0(2)-10 V), 2 digital inputs, 1 switch input |
| Load monitoring | Adjustable response threshold |
| Current limitation | Ieff; current peak limitation to 3 x Inom in VAR mode |
| Relay output | Changeover, max. 250 V, 4 A, 180 W, 1500 VA |
| Analog outputs | 3, each 0(2)-10 V / 0(4)-20 mA |
| External supply | 85-265 V (47-63 Hz) |
| Integrated fuse | Semiconductor fuse (H) |
| Bus interface (optional module) | PROFIBUS DPV1, PROFINET, Modbus RTU/TCP, CANopen, DeviceNet, EtherNet/IP |
Technical document (PDF) | Request a quote for 2A600-100HFRLP2 (reply within 24 hours)
