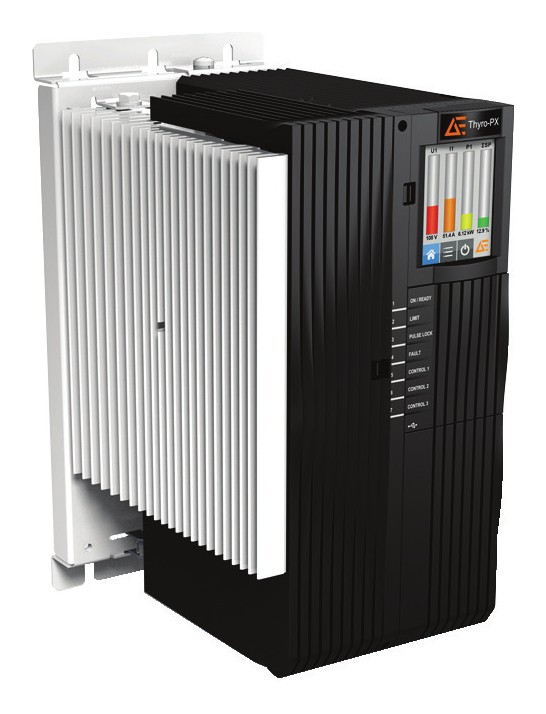

1PX690-780HF AEG - Thyro Power Controller
1PX690-780HF Description
The 1PX690-780HF from AEG is a thyristor power controller. Typical applications are industrial heating, furnace control, drying lines and infrared heating systems.
Looking for a replacement 1PX690-780HF? USComponent can quote new and hard-to-find stock and ships worldwide. Request a quote for pricing and lead time, and double-check the datasheet to make sure it fits your application.
Summary of Features
- Thyro-PX 1PX: One-phase power controller
- 690 V type (rated connection voltage 500 V -20% up to 690 V +10%), 780 A type current
- Integrated fan (HF type)
- Full wave switch (TAKT) and phase-angle firing (VAR), soft start / soft down
- Control accuracy ±0.5% voltage or current, ±1% power
- For resistive loads, transformer loads and heating elements
- Integrated semiconductor fuse; status via touch screen display or PC tool
Technical documentation: Advanced Energy Thyro-PX
Target Applications
AEG 1PX690-780HF is used for power control of electrical heating in industrial furnaces and ovens, glass manufacturing equipment, plastic extruders and presses, automotive paint drying lines, chemical pipe trace heating, packaging shrink tunnels and infrared drying in printing machines.
Key Specifications
AEG 1PX690-780HF is a Thyro-PX single-phase digital thyristor (SCR) power controller, 690 V type voltage, 780 A, with integrated semiconductor fuse and built-in fan (HF type). Source: AEG / Advanced Energy Thyro-PX Series datasheet.
| Parameter | Value |
|---|---|
| Ratings | |
| Series | Thyro-PX |
| Phase version | 1PX: single-phase |
| Rated connection voltage | 500 V -20% to 690 V +10% |
| Rated current | 780 A |
| Frequency | 45-65 Hz |
| Control voltage | AC 90-265 V, or DC 24 V ±10% |
| Cooling | Integrated fan, 230 V 50/60 Hz (HF type) |
| Load types | Resistive and transformer loads; loads with Rwarm/Rcold up to factor 20 (MOSI starting mode) |
| Functions | |
| Operating modes | TAKT, VAR, VSC_VAR |
| Control types | U, U², I, I², P, or without regulation |
| Control accuracy | ±0.5% voltage or current, ±1% power |
| Set point inputs | Up to 3 analog inputs, 0(4)-20 mA / 0(1)-10(2) V |
| Actual value outputs | 3 (U, I, P), 0-20 mA / 0-10 V |
| Fault signaling | 3 relays plus status / diagnostic LEDs |
| Integrated fuse | Semiconductor fuse |
| Mechanical | |
| Dimensions (W x H x D) | 242 x 787 x 505 mm (9.5 x 31.0 x 19.9 in) |
| Weight | 35 kg (77.2 lb) |
| Ambient temperature at rated current | Up to 35°C with fan, up to 45°C with passive convection (max 40°C for UL) |
Technical document (PDF) | Request a quote for 1PX690-780HF (reply within 24 hours)
