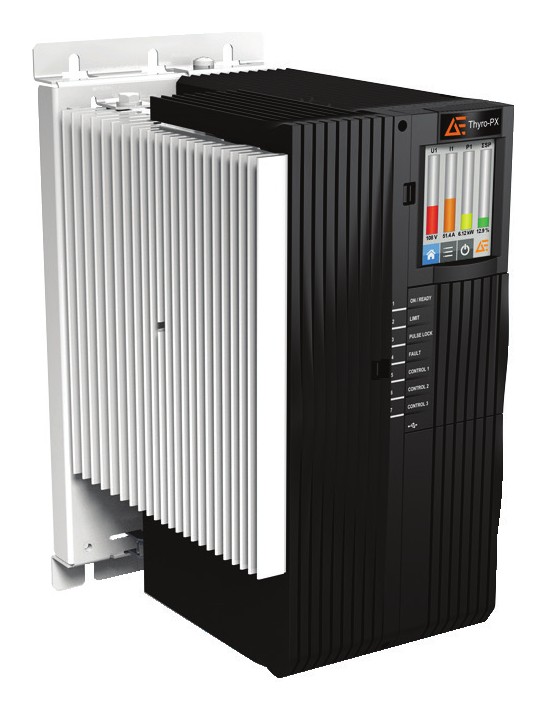

1PX690-2000HF AEG - Thyro Power Controller

1PX690-2000HF Description

AEG makes the 1PX690-2000HF, a thyristor power controller. Typical applications are industrial heating, furnace control, drying lines and infrared heating systems.

We help engineers and repair technicians find parts like the 1PX690-2000HF, including obsolete ones. Send a quick RFQ for current pricing and delivery. Before ordering, please confirm ratings and pin-out with the official datasheet.

Summary of Features

Target Applications

AEG 1PX690-2000HF is used for power control of electrical heating in industrial furnaces and ovens, glass manufacturing equipment, plastic extruders and presses, automotive paint drying lines, chemical pipe trace heating, packaging shrink tunnels and infrared drying in printing machines.

Key Specifications

AEG 1PX690-2000HF is a Thyro-PX single-phase digital thyristor (SCR) power controller, 690 V type voltage, 2000 A, with integrated semiconductor fuse and built-in fan (HF type). Source: AEG / Advanced Energy Thyro-PX Series datasheet.

Parameter	Value
Ratings
Series	Thyro-PX
Phase version	1PX: single-phase
Rated connection voltage	500 V -20% to 690 V +10%
Rated current	2000 A
Frequency	45-65 Hz
Control voltage	AC 90-265 V, or DC 24 V ±10%
Cooling	Integrated fan, 230 V 50/60 Hz (HF type)
Load types	Resistive and transformer loads; loads with Rwarm/Rcold up to factor 20 (MOSI starting mode)
Functions
Operating modes	TAKT, VAR, VSC_VAR
Control types	U, U², I, I², P, or without regulation
Control accuracy	±0.5% voltage or current, ±1% power
Set point inputs	Up to 3 analog inputs, 0(4)-20 mA / 0(1)-10(2) V
Actual value outputs	3 (U, I, P), 0-20 mA / 0-10 V
Fault signaling	3 relays plus status / diagnostic LEDs
Integrated fuse	Semiconductor fuse
Mechanical
Dimensions (W x H x D)	522 x 577 x 445 mm (20.6 x 22.7 x 17.5 in)
Weight	50 kg (110.2 lb)
Ambient temperature at rated current	Up to 35°C with fan, up to 45°C with passive convection (max 40°C for UL)
