MIG400J101H Toshiba - Intelligent Power Module

MIG400J101H Description

Rated at 600 V and 400 A, the Toshiba MIG400J101H is an intelligent power module (IPM). Because the gate drivers and protection circuits are built in, it is popular in compact motor drives, servo amplifiers and appliance inverters.

Need the MIG400J101H? USComponent stocks and sources power modules for repair shops, OEMs and maintenance teams worldwide. Request a quote and we'll confirm availability and lead time. Always compare against the datasheet before ordering.

Summary of Features

Target Applications

Toshiba MIG400J101H is used for compact inverter stages in AC motor drives, servo amplifiers, air conditioner and appliance inverters, elevators and general purpose inverters.

Key Specifications

MIG400J101H is a 600 V, 400 A intelligent power module (IPM). Source: manufacturer datasheet.

Parameter	Value
Product type	Intelligent power module (IPM)
Collector-emitter voltage (VCES)	600 V
Collector current (IC)	400 A
Isolation voltage	2,500 V

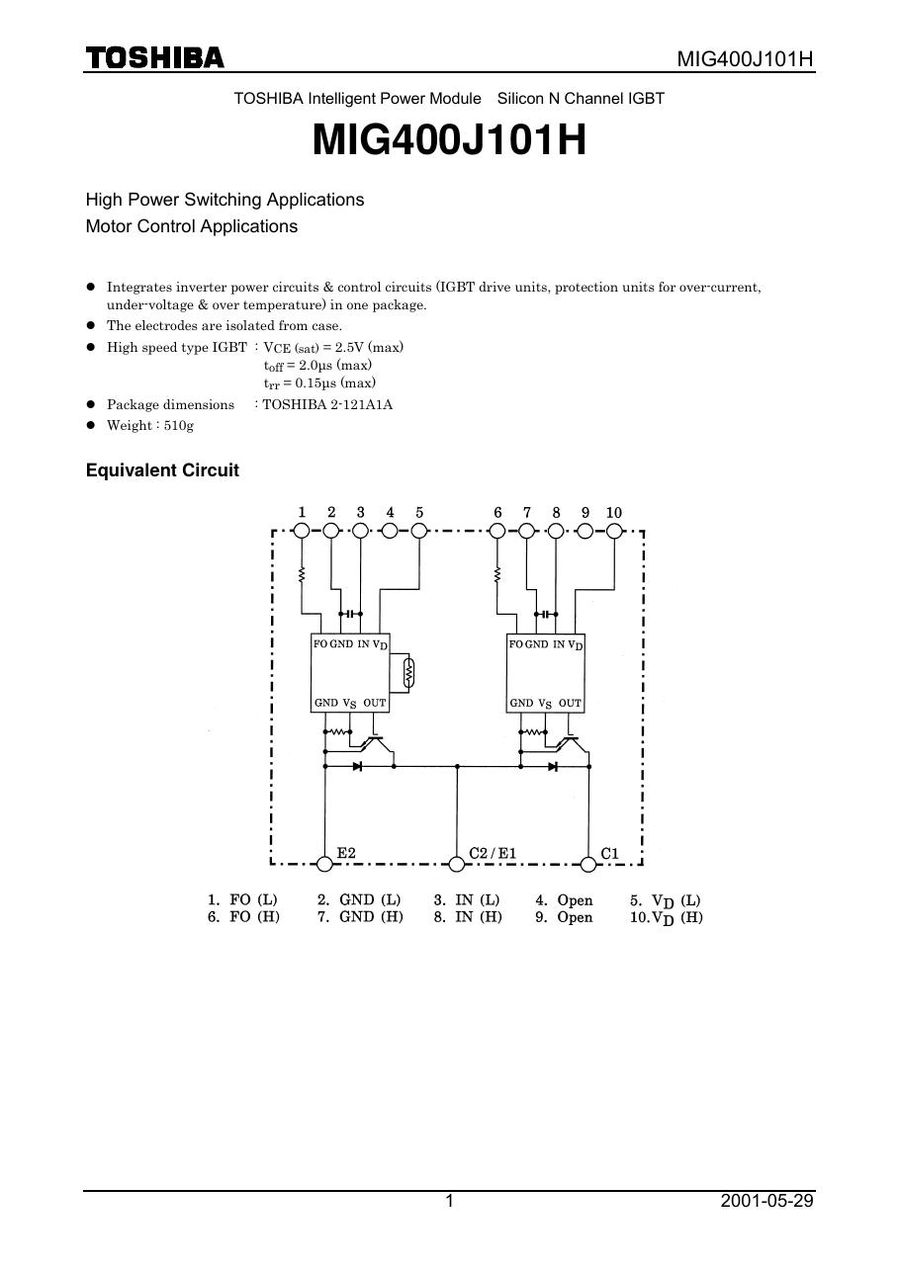

Datasheet	Available on this page (PDF)

Technical document (PDF)  |  Request a quote for MIG400J101H (reply within 24 hours)
