SKT491-12E Semikron - Thyristor Module

SKT491-12E Description

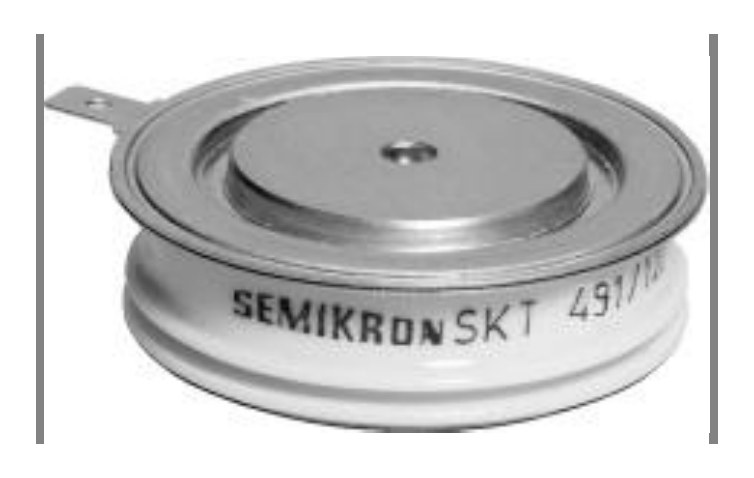

SKT491-12E is a capsule (press-pack) line thyristor from Semikron, rated 1200V, 490A. Typical applications: DC motor control, controlled rectifiers and AC controllers.

USComponent supplies SKT491-12E and other power semiconductors and power supplies, including discontinued types. Request a quote for price and lead time - we reply within 24 hours.

Summary of Features

Target Applications

Semikron SKT491-12E is used for DC motor control, controlled rectifiers and AC controllers.

Key Specifications

SKT491-12E is a capsule (press-pack) line thyristor from Semikron, rated 1200V, 490A. Source: manufacturer datasheet.

Parameter	Value
Manufacturer	Semikron
Repetitive peak reverse / off-state voltage VRRM, VDRM	1200 V
Average on-state current ITAV	490 A (sin. 180, DSC, Tc = 80 °C)
Max. RMS on-state current ITRMS	1000 A
Surge current ITSM (25 °C, 10 ms)	8000 A
i²t (25 °C)	320 000 A²s
On-state voltage VT max. (25 °C)	2.1 V (IT = 1500 A)
Package	Capsule (press-pack), double sided cooling
Datasheet	Available on this page (PDF)

Note: data taken from the Semikron datasheet of SKT 491 series, which covers SKT491-12E.
