SKR71-12 Semikron - Thyristor / Diode Module

SKR71-12 Description

Semikron SKR71-12 is a rectifier diode. Diode modules like this are common in rectifier front ends, DC power supplies, welders and plating equipment. Many of these parts are still in service in machines built years ago, and a direct replacement is often the fastest way to get one running again.

Request a quote for the SKR71-12 and our team will get back to you with price, quantity available and lead time. We ship worldwide. As with any power device, please check the manufacturer's datasheet to confirm it matches your design.

Summary of Features

Target Applications

Semikron SKR71-12 is used for AC/DC power conversion and control: controlled and uncontrolled rectifiers, DC motor drives, soft starters, battery chargers, welding equipment, heater and temperature control, and AC power controllers.

Key Specifications

SKR71-12 is a 1,200 V, 70 A power module. Source: manufacturer datasheet (Semikron).

Parameter	Value
Repetitive peak reverse voltage (VRRM / VDRM)	1,200 V
Non-repetitive peak reverse voltage (VRSM)	1,200 V
Average on-state / forward current	70 A (sin. 180°, Tc = 125 °C)
RMS current, max. (continuous)	150 A
On-state / forward voltage, max. (Tvj = 25 °C)	1.5 V
Weight	approx. 30 g

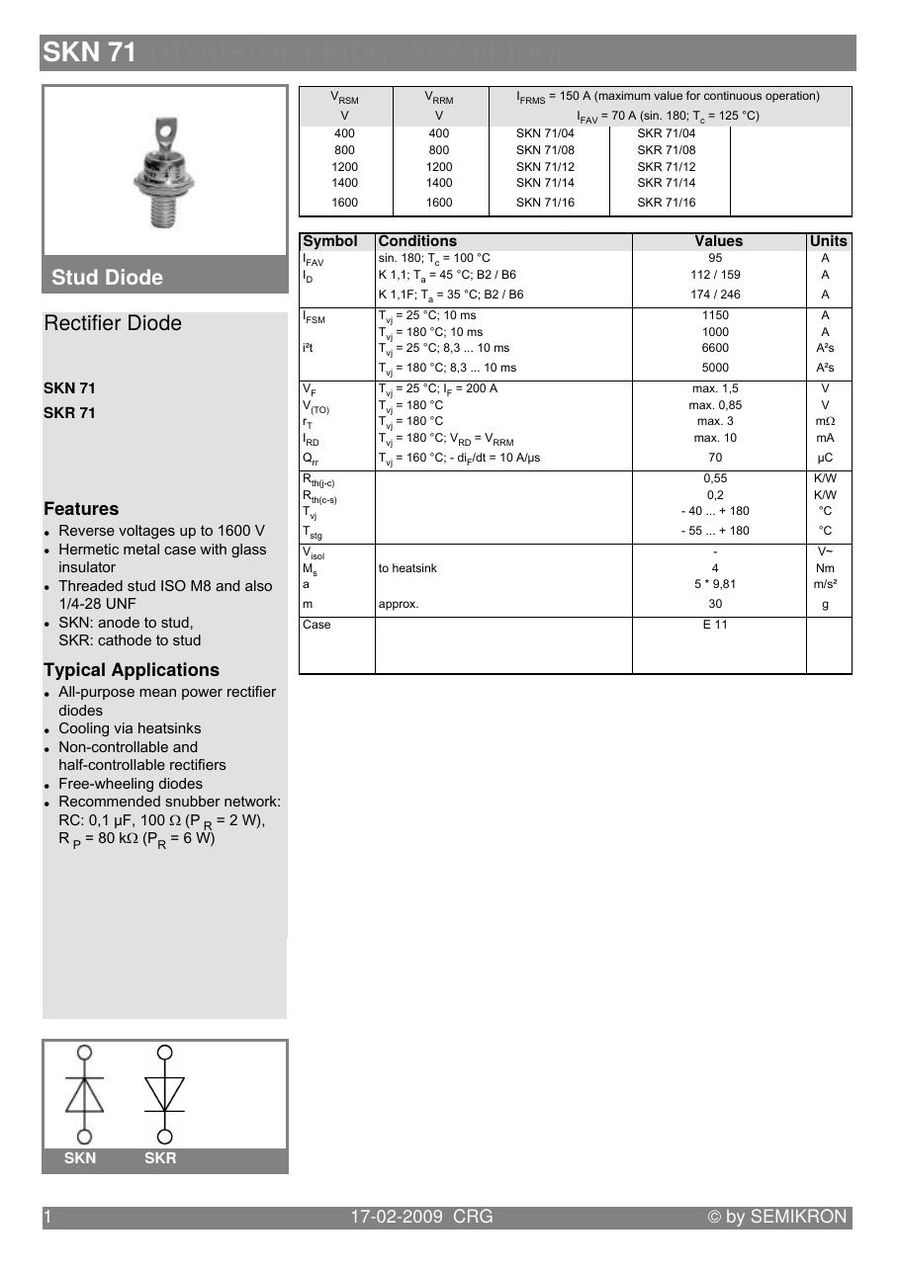

Datasheet	Available on this page (PDF)

Technical document (PDF)  |  Request a quote for SKR71-12 (reply within 24 hours)
