SKM400GAL17E4 Semikron - IGBT Module

Category: IGBT Modules

Specifications: 1700V, 400A

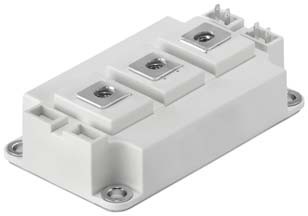

SKM400GAL17E4 Semikron IGBT Module

Representative image – actual product may differ

Availability and lead time are confirmed in our quote.

  • ✓ Quote within 24 hours
  • ✓ Original manufacturer parts, inspected before shipping
  • ✓ Credit cards and NET terms accepted

Or email sales@uscomponent.com or call 1-281-968-0718.

SKM400GAL17E4 Description

SKM400GAL17E4 is a 1700 V / 400 A chopper IGBT module from Semikron Danfoss (SEMITRANS 3 package). Typical applications: electronic welders, Brake chopper, Switched reluctance motor.

USComponent supplies SKM400GAL17E4 and other Semikron power modules. Request a quote for price and lead time - we reply within 24 hours.

Summary of Features

  • Insulated copper baseplate using DBC Technology (Direct Copper Bonding)
  • With integrated Gate resistor
  • For switching frequencies up to 8kHz
  • UL recognized, file no. E63532

Target Applications

Semikron SKM400GAL17E4 is used for Electronic welders, Brake chopper, Switched reluctance motor.

Key Specifications

SKM400GAL17E4 is a 1700 V / 400 A chopper IGBT module from Semikron Danfoss (SEMITRANS 3 package). Source: Semikron Danfoss datasheet and product data.

ParameterValue
ManufacturerSemikron Danfoss
Product typeIGBT module
ConfigurationChopper
Collector-emitter voltage (VCES)1700 V
Nominal collector current (IC nom)400 A
Chip technologyIGBT 4 (Trench)
PackageSEMITRANS 3
Supply status (Semikron)Active
DatasheetAvailable on this page (PDF)

Technical document (PDF)  |  Request a quote for SKM400GAL17E4 (reply within 24 hours)
