SKM195GB066D Semikron - Thyristor / Diode Module

SKM195GB066D Description

The SKM195GB066D is an IGBT module made by Semikron. It is built with two switches in a half-bridge (2-in-1) arrangement. It is a common choice for inverter stages in AC drives, servo systems, welders and uninterruptible power supplies. Production of many older modules has ended, but we keep sourcing them for repair and maintenance customers.

Looking for a replacement SKM195GB066D? USComponent can quote new and hard-to-find stock and ships worldwide. Request a quote for pricing and lead time, and double-check the datasheet to make sure it fits your application.

Summary of Features

Target Applications

Semikron SKM195GB066D is used for AC/DC power conversion and control: controlled and uncontrolled rectifiers, DC motor drives, soft starters, battery chargers, welding equipment, heater and temperature control, and AC power controllers.

Key Specifications

SKM195GB066D is a 600 V, 195 A IGBT module, dual (half bridge) configuration. Source: manufacturer datasheet.

Parameter	Value
Product type	IGBT module
Configuration	Dual (half bridge)
Collector-emitter voltage (VCES)	600 V
Collector current (IC)	195 A

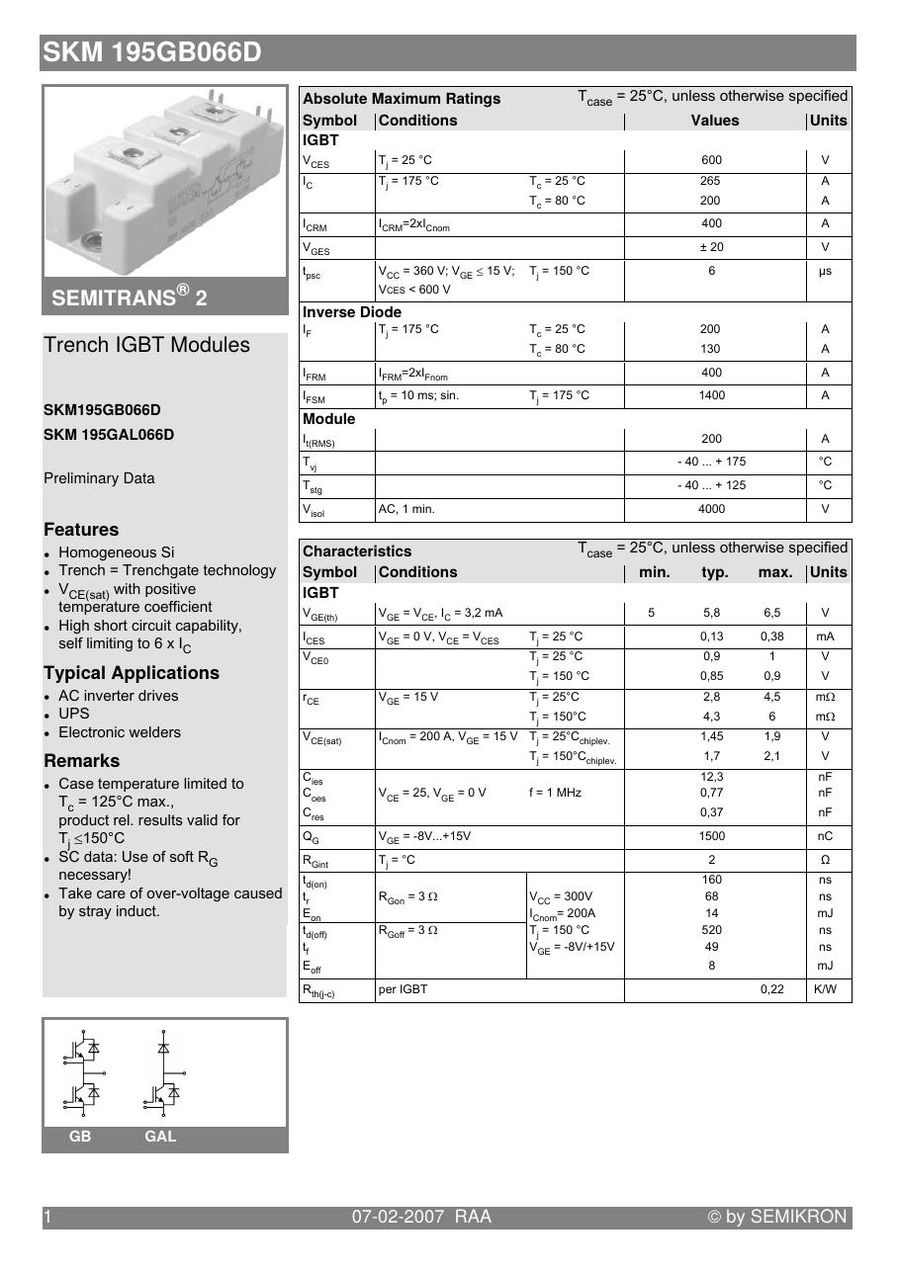

Datasheet	Available on this page (PDF)

Technical document (PDF)  |  Request a quote for SKM195GB066D (reply within 24 hours)
