SKM1400GAR12P4 Semikron - IGBT Module

Category: IGBT Modules

Specifications: 1200V, 1400A

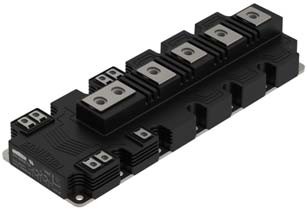

SKM1400GAR12P4 Semikron IGBT Module

Representative image – actual product may differ

Availability and lead time are confirmed in our quote.

  • ✓ Quote within 24 hours
  • ✓ Original manufacturer parts, inspected before shipping
  • ✓ Credit cards and NET terms accepted

Or email sales@uscomponent.com or call 1-281-968-0718.

SKM1400GAR12P4 Description

SKM1400GAR12P4 is a 1200 V / 1400 A chopper IGBT module from Semikron Danfoss (SEMITRANS 10 package). Typical applications: brake chopper, Windturbines.

USComponent supplies SKM1400GAR12P4 and other Semikron power modules. Request a quote for price and lead time - we reply within 24 hours.

Summary of Features

  • Symmetrical current sharing
  • Low-inductive module design
  • High mechanical robustness
  • UL recognized, file no. E63532

Target Applications

Semikron SKM1400GAR12P4 is used for Brake chopper, Windturbines.

Key Specifications

SKM1400GAR12P4 is a 1200 V / 1400 A chopper IGBT module from Semikron Danfoss (SEMITRANS 10 package). Source: Semikron Danfoss datasheet and product data.

ParameterValue
ManufacturerSemikron Danfoss
Product typeIGBT module
Product lineSEMITRANS
ConfigurationChopper
Collector-emitter voltage (VCES)1200 V
Nominal collector current (IC nom)1400 A
Chip technologyIGBT 4 (Trench)
PackageSEMITRANS 10
Supply status (Semikron)Active (new)
DatasheetAvailable on this page (PDF)

Technical document (PDF)  |  Request a quote for SKM1400GAR12P4 (reply within 24 hours)
