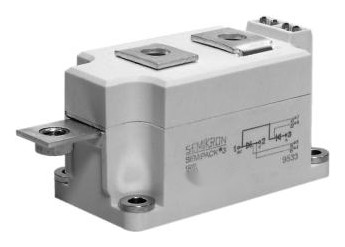

SKKT213-16E Semikron - Thyristor / Diode Module

SKKT213-16E Description

Semikron makes the SKKT213-16E, a 1600 V, 230 A thyristor module. You'll find thyristors like this in soft starters, static switches, DC motor controllers and heater controls.

We help engineers and repair technicians find parts like the SKKT213-16E, including obsolete ones. Send a quick RFQ for current pricing and delivery. Before ordering, please confirm ratings and pin-out with the official datasheet.

Summary of Features

Target Applications

Semikron SKKT213-16E is used for AC/DC power conversion and control: controlled and uncontrolled rectifiers, DC motor drives, soft starters, battery chargers, welding equipment, heater and temperature control, and AC power controllers.

Key Specifications

SKKT213-16E is a 1,600 V, 213 A thyristor module (dual). Source: manufacturer datasheet (Semikron).

Parameter	Value
Product type	Thyristor module (dual)
Repetitive peak reverse voltage (VRRM / VDRM)	1,600 V
Non-repetitive peak reverse voltage (VRSM)	1,700 V
Average on-state / forward current	213 A (sin. 180°, Tc = 90 °C)
RMS current, max. (continuous)	370 A
Surge current (10 ms, Tvj = 130 °C)	7,500 A
On-state / forward voltage, max. (Tvj = 25 °C)	1.9 V
Package	SEMIPACK 3
Weight	approx. 400 g
Datasheet	Available on this page (PDF)

Technical document (PDF)  |  Request a quote for SKKT213-16E (reply within 24 hours)
