SKKT122-16E Semikron - Thyristor / Diode Module

SKKT122-16E Description

The SKKT122-16E from Semikron is a thyristor module. It is used in phase-controlled rectifiers, soft starters, battery chargers and temperature controllers for furnaces and heaters.

USComponent has been supplying power semiconductors since 2001, including discontinued and hard-to-find part numbers. Send us an RFQ for the SKKT122-16E and we will reply with price, condition and lead time. Please check the manufacturer's datasheet to confirm ratings, package and pin-out before you order.

Summary of Features

Target Applications

Semikron SKKT122-16E is used for Temperature control (e.g. for ovens, chemical processes) and professional light dimming (studios, theaters).

Key Specifications

SKKT122-16E is a 1,600 V, 122 A thyristor module (dual). Source: manufacturer datasheet (Semikron).

Parameter	Value
Product type	Thyristor module (dual)
Repetitive peak reverse voltage (VRRM / VDRM)	1,600 V
Non-repetitive peak reverse voltage (VRSM)	1,700 V
Average on-state / forward current	122 A (sin. 180°, Tc = 88 °C)
RMS current, max. (continuous)	195 A
On-state / forward voltage, max. (Tvj = 25 °C)	1.55 V
Isolation test voltage (Visol, a.c. 50 Hz)	3600 / 3000 V~
Package	SEMIPACK 2
Weight	approx. 165 g

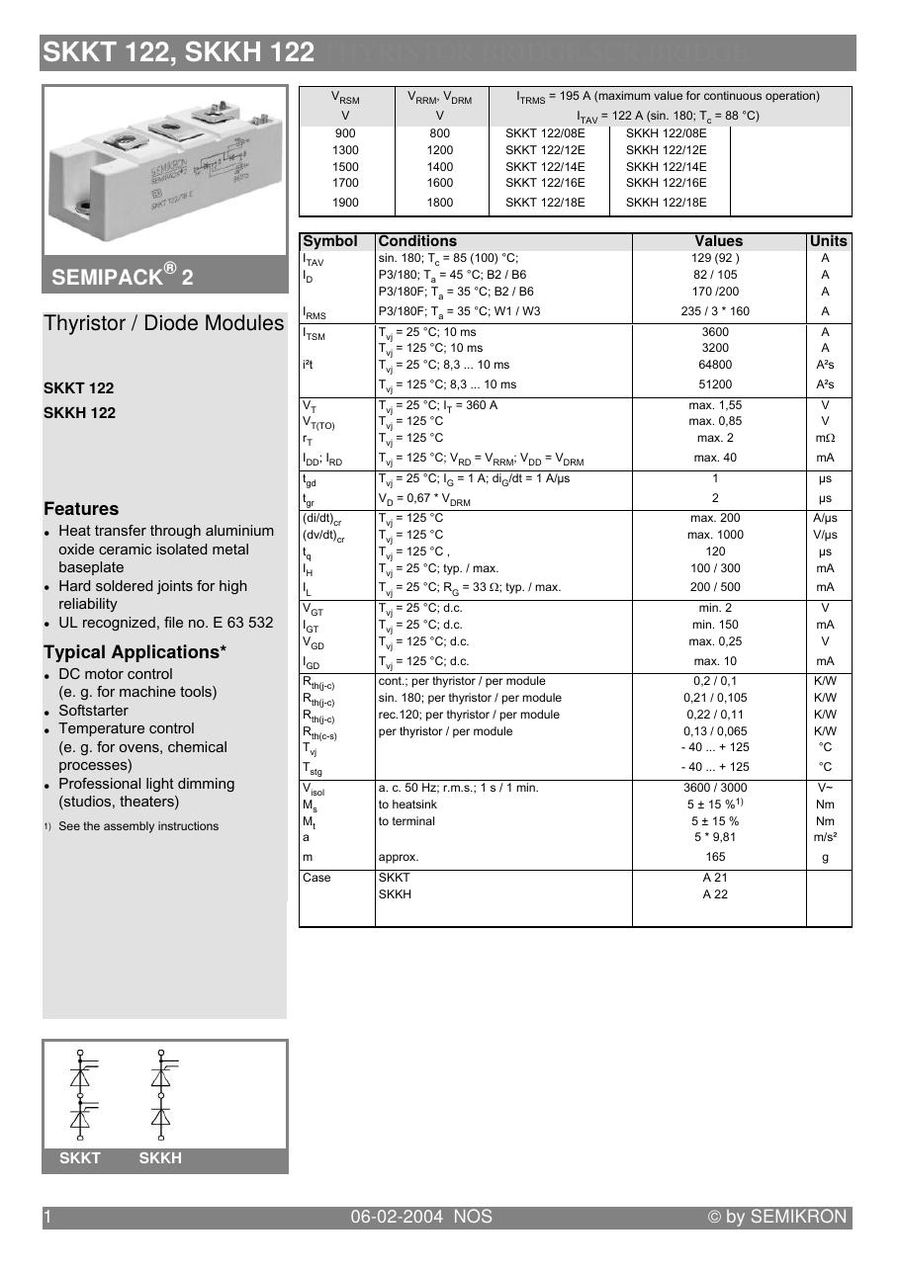

Datasheet	Available on this page (PDF)

Technical document (PDF)  |  Request a quote for SKKT122-16E (reply within 24 hours)
