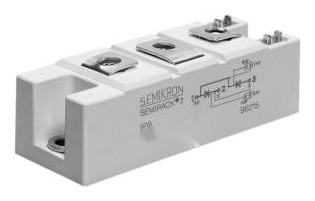

SKKH122-14E Semikron - Thyristor / Diode Module

SKKH122-14E Description

The SKKH122-14E from Semikron is a thyristor module with a 1400 V / 122 A rating. Typical applications include soft starters, AC power controllers, controlled rectifiers, DC motor drives and heating control.

Request a quote for the SKKH122-14E and our team will get back to you with price, quantity available and lead time. We ship worldwide. As with any power device, please check the manufacturer's datasheet to confirm it matches your design.

Summary of Features

Target Applications

Semikron SKKH122-14E is used for AC/DC power conversion and control: controlled and uncontrolled rectifiers, DC motor drives, soft starters, battery chargers, welding equipment, heater and temperature control, and AC power controllers.

Key Specifications

SKKH122-14E is a 1,400 V, 122 A thyristor / diode module. Source: manufacturer datasheet (Semikron).

Parameter	Value
Product type	Thyristor / diode module
Repetitive peak reverse voltage (VRRM / VDRM)	1,400 V
Non-repetitive peak reverse voltage (VRSM)	1,500 V
Average on-state / forward current	122 A (sin. 180°, Tc = 88 °C)
RMS current, max. (continuous)	195 A
On-state / forward voltage, max. (Tvj = 25 °C)	1.55 V
Package	SEMIPACK 2
Weight	approx. 165 g
Datasheet	Available on this page (PDF)
