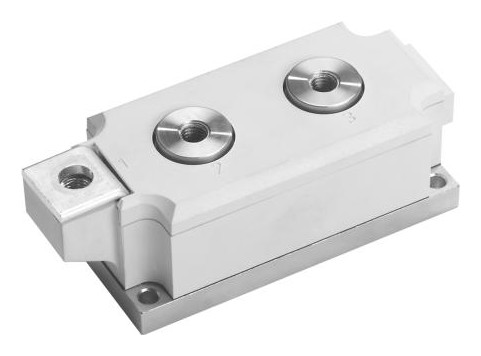

SKKD700-18 Semikron - Power Transistor Module

SKKD700-18 Description

SKKD700-18 is a 1800 V, 700 A diode module made by Semikron. It is used in input rectifiers, freewheeling and clamping circuits, battery chargers and welding power sources.

USComponent has been supplying power semiconductors since 2001, including discontinued and hard-to-find part numbers. Send us an RFQ for the SKKD700-18 and we will reply with price, condition and lead time. Please check the manufacturer's datasheet to confirm ratings, package and pin-out before you order.

Summary of Features

Target Applications

Semikron SKKD700-18 is used for Uncontrollable rectifiers for AC/AC converters and Line rectifiers for transistorized AC motor controllers.

Key Specifications

SKKD700-18 is a 1,800 V, 700 A diode module (dual). Source: manufacturer datasheet (Semikron).

Parameter	Value
Product type	Diode module (dual)
Repetitive peak reverse voltage (VRRM / VDRM)	1,800 V
Non-repetitive peak reverse voltage (VRSM)	1,900 V
Average on-state / forward current	700 A (sin. 180°, Tc = 100 °C)
RMS current, max. (continuous)	1,100 A
On-state / forward voltage, max. (Tvj = 25 °C)	1.3 V
Thermal resistance Rth(j-c), per thyristor / per module	0.062 / 0.031 K/W
Isolation test voltage (Visol, a.c. 50 Hz)	3600 / 3000 V~
Weight	approx. 1420 g
Datasheet	Available on this page (PDF)
