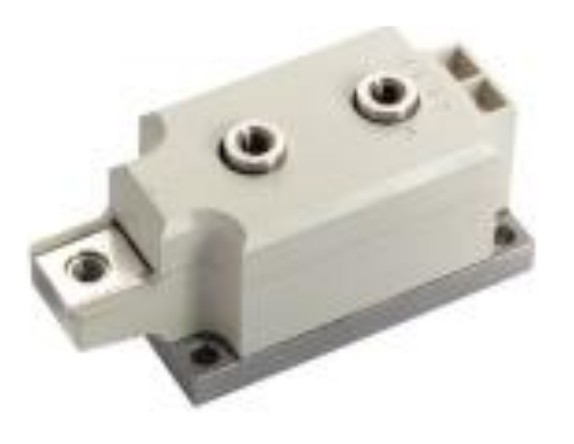

SKKD380-16 Semikron - Power Transistor Module

SKKD380-16 Description

SKKD380-16 is a 1600 V, 380 A diode module made by Semikron. Diode modules like this are common in rectifier front ends, DC power supplies, welders and plating equipment. Many of these parts are still in service in machines built years ago, and a direct replacement is often the fastest way to get one running again.

USComponent has been supplying power semiconductors since 2001, including discontinued and hard-to-find part numbers. Send us an RFQ for the SKKD380-16 and we will reply with price, condition and lead time. Please check the manufacturer's datasheet to confirm ratings, package and pin-out before you order.

Summary of Features

Target Applications

Semikron SKKD380-16 is used for Uncontrollable rectifiers for AC/AC converters, Line rectifiers for transistorized AC motor controllers and Field supply for DC motors.

Key Specifications

SKKD380-16 is a 1,600 V, 380 A diode module (dual). Source: manufacturer datasheet (Semikron).

Parameter	Value
Product type	Diode module (dual)
Repetitive peak reverse voltage (VRRM / VDRM)	1,600 V
Non-repetitive peak reverse voltage (VRSM)	1,700 V
Average on-state / forward current	380 A (sin. 180°, Tc = 100 °C)
RMS current, max. (continuous)	600 A
Isolation test voltage (Visol, a.c. 50 Hz)	3600 / 3000 V~
Weight	approx. 750 g
Datasheet	Available on this page (PDF)

Technical document (PDF)  |  Request a quote for SKKD380-16 (reply within 24 hours)
