SKKD100-08 Semikron - Power Transistor Module

SKKD100-08 Description

Rated at 800 V and 100 A, the Semikron SKKD100-08 is a diode module. It is used in input rectifiers, freewheeling and clamping circuits, battery chargers and welding power sources.

Need the SKKD100-08? USComponent stocks and sources power modules for repair shops, OEMs and maintenance teams worldwide. Request a quote and we'll confirm availability and lead time. Always compare against the datasheet before ordering.

Summary of Features

Target Applications

Semikron SKKD100-08 is used for AC/AC converters, line rectifiers for transistorized AC motor controllers, AC motor controllers and field supply for DC motors.

Key Specifications

SKKD100-08: key data from the Semikron datasheet.

Parameter	Value
Product type	Diode module (dual)
Repetitive peak reverse voltage (VRRM / VDRM)	800 V
Non-repetitive peak reverse voltage (VRSM)	900 V
Isolation test voltage (Visol, a.c. 50 Hz)	3600 / 3000 V~
Package	SEMIPACK 1

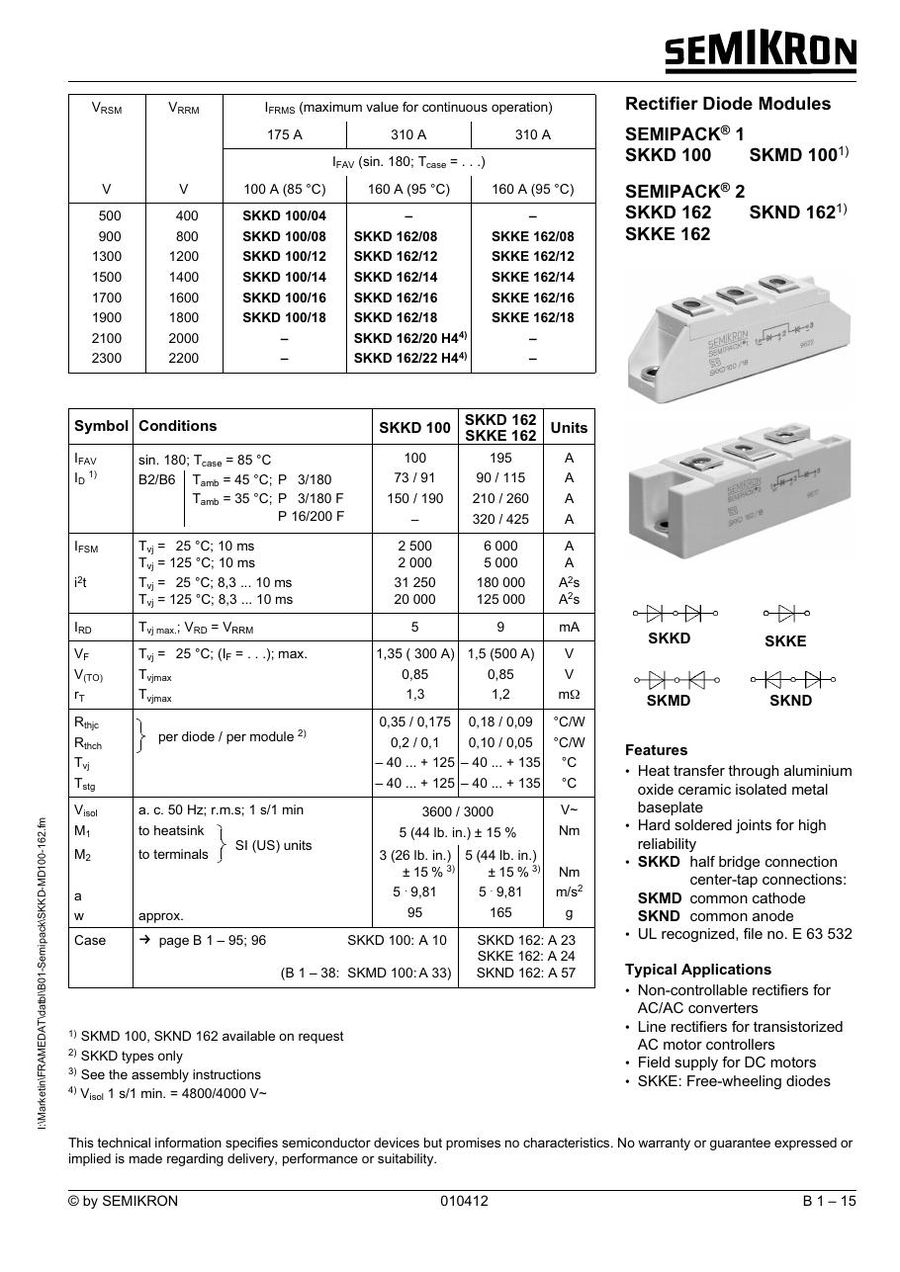

Datasheet	Available on this page (PDF)

Technical document (PDF)  |  Request a quote for SKKD100-08 (reply within 24 hours)
