SKDH100-14 Semikron - Rectifier Module

Also written as: SKDH100/14, SKDH10014

Category: Diode & Rectifier Modules

Specifications: 1400(V) / 100(A)

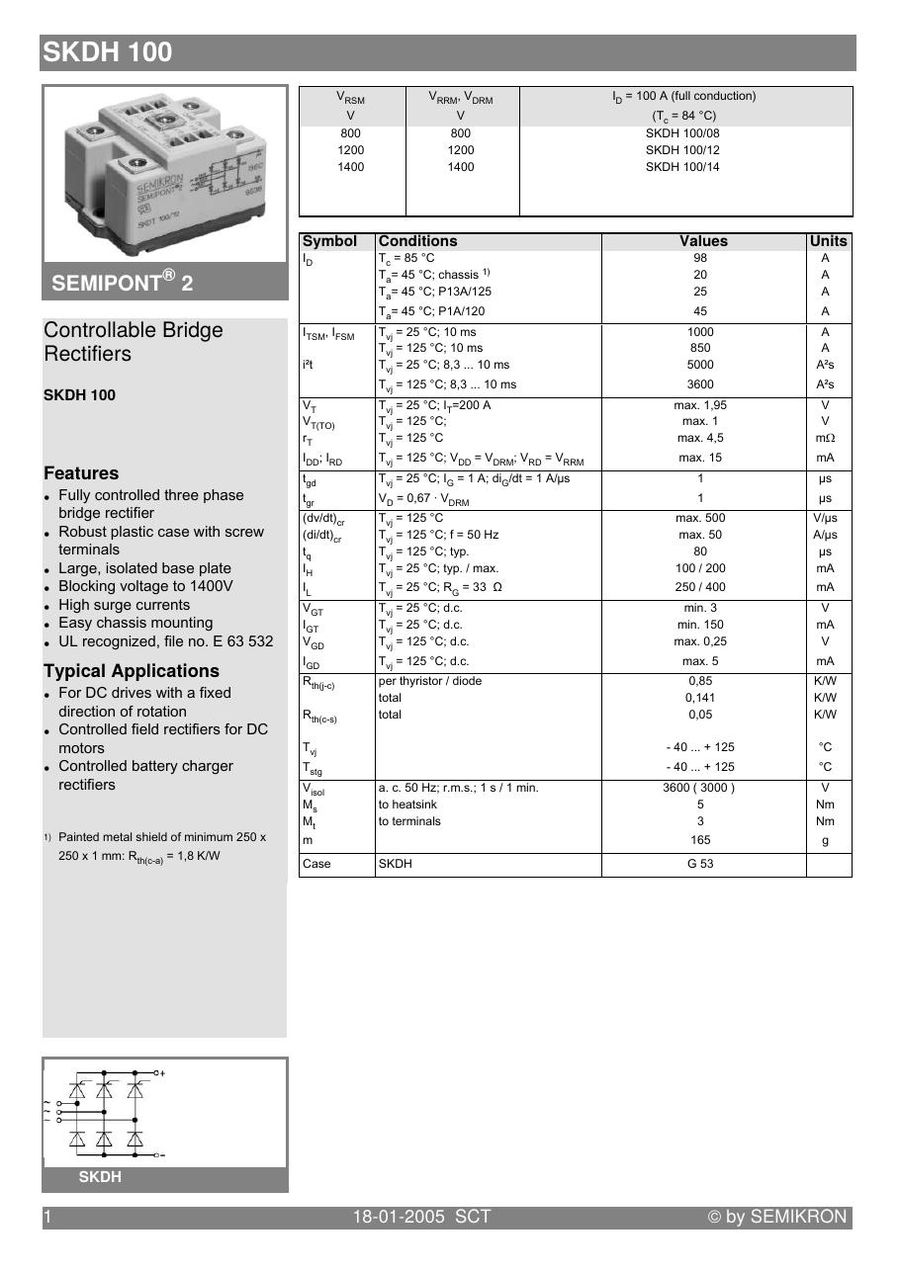

SKDH100/14 Semikron power module from Semikron

Representative image – actual product may differ

We beat competitor's price with faster delivery.

For 6 pieces or more, submit your inquiry here, email to sales@uscomponent.com or call 1-281-968-0718

SKDH100-14 Description

Semikron makes the SKDH100-14, a diode module. Typical applications include AC-to-DC rectification in drives and power supplies, freewheeling paths and battery charging.

USComponent (Young & New Century LLC) supplies power modules, thyristors, diodes and other industrial components, including legacy parts. Contact us for a quote on the SKDH100-14, and please confirm ratings against the datasheet before ordering.

Summary of Features

  • Fully controlled three phase bridge rectifier
  • Robust plastic case with screw terminals
  • Large, isolated base plate
  • Blocking voltage up to 1400 V
  • High surge currents
  • Easy chassis mounting
  • UL recognized, file no. E63532

Target Applications

Semikron SKDH100-14 is used for For DC drives with a fixed direction of rotation, controlled field rectifier for DC motors and controlled battery charger rectifiers.

Key Specifications

ManufacturerSemikron
CategoryPower Transistor Modules
Rated voltage1400 V
Rated current100 A

Technical document (PDF)  |  Request a quote for SKDH100-14 (reply within 24 hours)

Related Part Numbers

SKDH100-12
1200V, 98A		SKDH100-08
800V, 98A		SKDH100-06
600(V) / 98(A)		SKDH100-04
1400V, 98A
SKDH115-16
1600(V) / 115(A)		SKDH115-12
1200V, 110A		SKDH116-12-L75
1200V, 110A		SKDH116-16-L100
1600V, 110A
SKDH116-16-L105
1600V, 110A		SKDH116-16-L140
1600V, 110A		SKDH116-16-L75
1600V, 110A		SKDH146-12-L100
1200V, 140A
SKDH146-16-L100
1600V, 140A		SKDH146-16-L105
1600V, 140A		SKDH146-16-L140
1600V, 140A		SKD83-18
1800V, 83A
