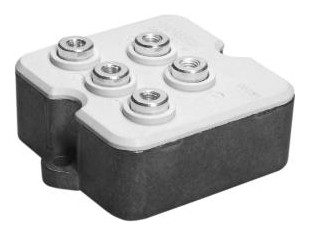

SKD50-12A Semikron - Rectifier Bridge

SKD50-12A Description

Rated at 1200 V and 10 A, the Semikron SKD50-12A is a diode module. It takes care of AC-to-DC input rectification in motor drives, power supplies, battery chargers and welding equipment.

Looking for a replacement SKD50-12A? USComponent can quote new and hard-to-find stock and ships worldwide. Request a quote for pricing and lead time, and double-check the datasheet to make sure it fits your application.

Summary of Features

Target Applications

Semikron SKD50-12A is used for Three phase rectifiers for power supplies, input rectifiers for variable frequency drives, rectifiers for DC motor field supplies and battery charger rectifiers.

Key Specifications

SKD50-12A: key data from the Semikron datasheet.

Parameter	Value
Average on-state / forward current	50 A (sin. 180°, Tc = 92 °C)
Surge current (10 ms, Tvj = 150 °C)	600 A
Isolation test voltage (Visol, a.c. 50 Hz)	3000 / 2500 V~
Datasheet	Available on this page (PDF)
