SK70MLI12T4Tp Semikron - IGBT Module

Category: IGBT Modules

Specifications: 1200V, 70A

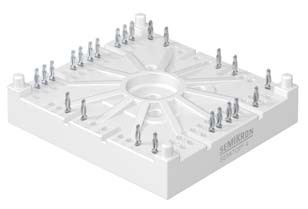

SK70MLI12T4Tp Semikron IGBT Module

Representative image – actual product may differ

Availability and lead time are confirmed in our quote.

  • ✓ Quote within 24 hours
  • ✓ Original manufacturer parts, inspected before shipping
  • ✓ Credit cards and NET terms accepted

Or email sales@uscomponent.com or call 1-281-968-0718.

SK70MLI12T4Tp Description

SK70MLI12T4Tp is a 1200 V / 70 A 3-level IGBT module from Semikron Danfoss (SEMITOP 4 Press-Fit package).

USComponent supplies SK70MLI12T4Tp and other Semikron power modules. Request a quote for price and lead time - we reply within 24 hours.

Summary of Features

  • One screw mounting module
  • Solder free mounting with Press-Fit terminals
  • Fully compatible with other SEMITOP Press-Fit types
  • Improved thermal performances by aluminium oxide substrate
  • 1200V Trench4 IGBT technology
  • Robust and soft switching CAL4F diode technology
  • Integrated NTC temperature sensor

Target Applications

Semikron SK70MLI12T4Tp finds applications in various industries and systems where high power switching is required.

Key Specifications

SK70MLI12T4Tp is a 1200 V / 70 A 3-level IGBT module from Semikron Danfoss (SEMITOP 4 Press-Fit package). Source: Semikron Danfoss datasheet and product data.

ParameterValue
ManufacturerSemikron Danfoss
Product typeIGBT module
Product lineSEMITOP
Configuration3-level
Collector-emitter voltage (VCES)1200 V
Nominal collector current (IC nom)70 A
Chip technologyIGBT 4 (Trench)
PackageSEMITOP 4 Press-Fit
Supply status (Semikron)Active (new)
DatasheetAvailable on this page (PDF)

Technical document (PDF)  |  Request a quote for SK70MLI12T4Tp (reply within 24 hours)
