SK50DGDL12T7ETE2s Semikron - IGBT Module

Category: IGBT Modules

Specifications: 1200V, 50A

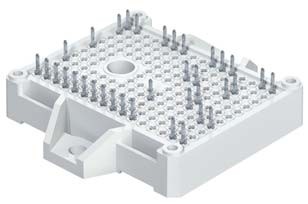

SK50DGDL12T7ETE2s Semikron IGBT Module

Representative image – actual product may differ

Availability and lead time are confirmed in our quote.

  • ✓ Quote within 24 hours
  • ✓ Original manufacturer parts, inspected before shipping
  • ✓ Credit cards and NET terms accepted

Or email sales@uscomponent.com or call 1-281-968-0718.

SK50DGDL12T7ETE2s Description

SK50DGDL12T7ETE2s is a 1200 V / 50 A CIB (converter + inverter + brake) IGBT module from Semikron Danfoss (SEMITOP E2 Solder package). Typical applications: motor drives, Air conditioning, Auxiliary inverters.

USComponent supplies SK50DGDL12T7ETE2s and other Semikron power modules. Request a quote for price and lead time - we reply within 24 hours.

Summary of Features

  • Optimized design for superior thermal performance
  • Low inductive design
  • Solder contact technology
  • Robust and soft switching CAL4F diode technology
  • PEP rectifier diode technology for enhanced power and environmental robustness
  • Integrated NTC temperature sensor
  • UL recognized file no. E 63 532

Target Applications

Semikron SK50DGDL12T7ETE2s is used for Motor drives, Air conditioning, Auxiliary inverters.

Key Specifications

SK50DGDL12T7ETE2s is a 1200 V / 50 A CIB (converter + inverter + brake) IGBT module from Semikron Danfoss (SEMITOP E2 Solder package). Source: Semikron Danfoss datasheet and product data.

ParameterValue
ManufacturerSemikron Danfoss
Product typeIGBT module
ConfigurationCIB (converter + inverter + brake)
Collector-emitter voltage (VCES)1200 V
Nominal collector current (IC nom)50 A
Chip technologyIGBT T7
PackageSEMITOP E2 Solder
Supply status (Semikron)Active (new)
DatasheetAvailable on this page (PDF)

Technical document (PDF)  |  Request a quote for SK50DGDL12T7ETE2s (reply within 24 hours)
