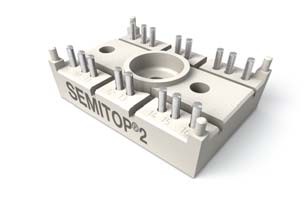

SK15GH066 Semikron - IGBT Module
Also written as: SK 15 GH 066
SK15GH066 Description
SK15GH066 is a 600 V / 15 A H-bridge IGBT module from Semikron Danfoss (SEMITOP 2 package). Typical applications: DC/DC converter, Motor drives, Welding.
USComponent supplies SK15GH066 and other Semikron power modules. Request a quote for price and lead time - we reply within 24 hours.
Summary of Features
- Compact design
- One screw mounting module
- Heat transfer and insulation through direct copper bonded aluminium oxide ceramic (DBC)
- 600V Trench IGBT3 technology
- 600V CAL IHD diode technology
- Integrated NTC temperature sensor
Target Applications
Semikron SK15GH066 is used for DC/DC converter, Motor drives, Welding.
Key Specifications
SK15GH066 is a 600 V / 15 A H-bridge IGBT module from Semikron Danfoss (SEMITOP 2 package). Source: Semikron Danfoss datasheet and product data.
| Parameter | Value |
|---|---|
| Manufacturer | Semikron Danfoss |
| Product type | IGBT module |
| Product line | SEMITOP |
| Configuration | H-bridge |
| Collector-emitter voltage (VCES) | 600 V |
| Nominal collector current (IC nom) | 15 A |
| Chip technology | IGBT 3 (Trench) |
| Package | SEMITOP 2 |
| Supply status (Semikron) | Active (new) |
| Datasheet | Available on this page (PDF) |
Note: Semikron writes this part number as "SK 15 GH 066".
Technical document (PDF) | Request a quote for SK15GH066 (reply within 24 hours)
