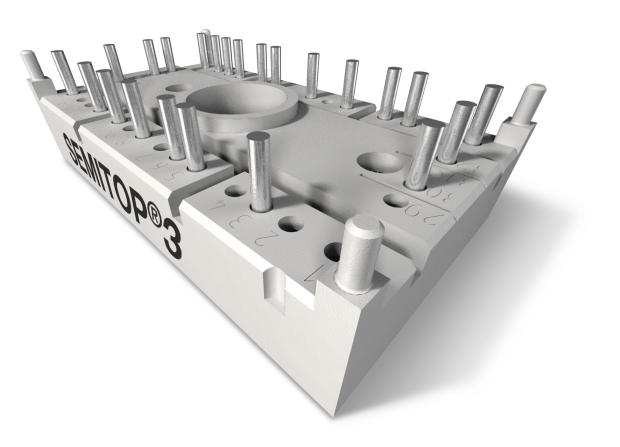

SK10DGDL12T4ET Semikron - IGBT Module

SK10DGDL12T4ET Description

SK10DGDL12T4ET is a 1200 V / 8 A CIB (converter + inverter + brake) IGBT module from Semikron Danfoss (SEMITOP 3 package).

USComponent supplies SK10DGDL12T4ET and other Semikron power modules. Request a quote for price and lead time - we reply within 24 hours.

Summary of Features

Target Applications

Semikron SK10DGDL12T4ET finds applications in various industries and systems where high power switching is required.

Key Specifications

SK10DGDL12T4ET is a 1200 V / 8 A CIB (converter + inverter + brake) IGBT module from Semikron Danfoss (SEMITOP 3 package). Source: Semikron Danfoss datasheet and product data.

Parameter	Value
Manufacturer	Semikron Danfoss
Product type	IGBT module
Product line	SEMITOP
Configuration	CIB (converter + inverter + brake)
Collector-emitter voltage (VCES)	1200 V
Nominal collector current (IC nom)	8 A
Chip technology	IGBT 4 (Trench)
Package	SEMITOP 3
Supply status (Semikron)	Active
Datasheet	Available on this page (PDF)

Note: Semikron writes this part number as "SK 10 DGDL 12T4 ET".
