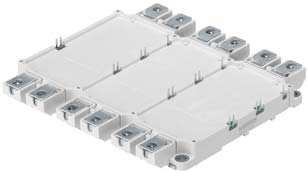

SEMiX503GD126HDc Semikron - IGBT Module

SEMiX503GD126HDc Description

SEMiX503GD126HDc is a 1200 V / 300 A six-pack IGBT module from Semikron Danfoss (SEMiX 33c package). Typical applications: AC inverter drives, Electronic welding.

USComponent supplies SEMiX503GD126HDc and other Semikron power modules. Request a quote for price and lead time - we reply within 24 hours.

Also available as SEMiX503GD126HDc-M04 (pre-applied TIM: HALA P8).

Summary of Features

Target Applications

Semikron SEMiX503GD126HDc is used for AC inverter drives, Electronic welding.

Key Specifications

SEMiX503GD126HDc is a 1200 V / 300 A six-pack IGBT module from Semikron Danfoss (SEMiX 33c package). Source: Semikron Danfoss datasheet and product data.

Parameter	Value
Manufacturer	Semikron Danfoss
Product type	IGBT module
Product line	SEMiX
Configuration	Six-pack
Collector-emitter voltage (VCES)	1200 V
Nominal collector current (IC nom)	300 A
Chip technology	IGBT 3 (Trench)
Package	SEMiX 33c
Supply status (Semikron)	Active
Datasheet	Available on this page (PDF)

Technical document (PDF)  |  Request a quote for SEMiX503GD126HDc (reply within 24 hours)
