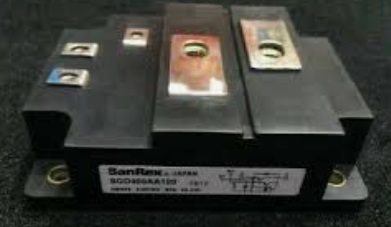

SQD400AA120SanRex - Power Transistor Module

SQD400AA120 Description

SanRex SQD400AA120 is a power semiconductor module. This type of component is widely used in motor drives, power conversion and industrial control equipment.

USComponent, a BBB A+ accredited business, helps engineers and maintenance teams source power semiconductors and industrial components, including older and hard-to-find part numbers. Please confirm ratings, package and pin-out against the manufacturer's datasheet before ordering, and request a quote for current pricing and lead time on the SQD400AA120.

Target Applications

SanRex SQD400AA120 is used for motor drives and inverters, servo amplifiers, UPS systems, welding machines and other industrial power switching equipment.

Key Specifications

Manufacturer	SanRex
Configuration	Darlington power transistor module with reverse-paralleled fast recovery diode, isolated base
VCBO / VCEX	1200 V / 1200 V
IC	400 A
hFE min.	75 @ 400 A, VCE = 2.8 V; 100 @ 400 A, VCE = 5 V
Isolation voltage	2500 V (AC, 1 min)
Terminal torque	M8: 8.8 - 10 N·m recommended
UL	E76102
Weight	670 g
