SQD300A60 SanRex - Bipolar Transistor Module

Category: Darlington / Bipolar Transistor Modules

Specifications: 600V, 300A

SQD300A60, SANREX, Power Transistor Module

Availability and lead time are confirmed in our quote.

  • ✓ Quote within 24 hours
  • ✓ Original manufacturer parts, inspected before shipping
  • ✓ Credit cards and NET terms accepted

Or email sales@uscomponent.com or call 1-281-968-0718.

SQD300A60 Description

SanRex makes the SQD300A60, a 600 V, 300 A industrial electronic component. Parts like this are found in industrial machinery, automation systems and control panels.

Looking for a replacement SQD300A60? USComponent can quote new and hard-to-find stock and ships worldwide. Request a quote for pricing and lead time, and double-check the datasheet to make sure it fits your application.

Target Applications

SanRex SQD300A60 is used for Motor Control（VVVF）, AC/DC Servo, UPS, Switching Power Supply and Ultrasonic Application.

Key Specifications

SQD300A60 is a 600 V, 300 A NPN Darlington power transistor module with a free-wheeling diode, from SanRex. Source: manufacturer data book (transistor modules, NPN Darlington, 1 element).

ParameterValue
Manufacturer (datasheet)SanRex
Product typeNPN Darlington power transistor module (1 element) with free-wheeling diode
Collector-base voltage VCBO600 V
Collector-emitter voltage VCEX(sus)600 V
Collector-emitter voltage VCEO(sus) min.450 V
Emitter-base voltage VEBO10 V
Collector current IC (DC / 1 ms)300 A / 600 A
Base current IB18 A
Diode forward current IF300 A
Collector power dissipation PC (Tc = 25 °C)1380 W
Junction temperature Tj150 °C
Storage temperature Tstg-40 to +125 °C
Isolation voltage2500 V AC, 1 min
DC current gain hFE min. (VCE = 2 / 5 V, IC = 300 A)75 / 100

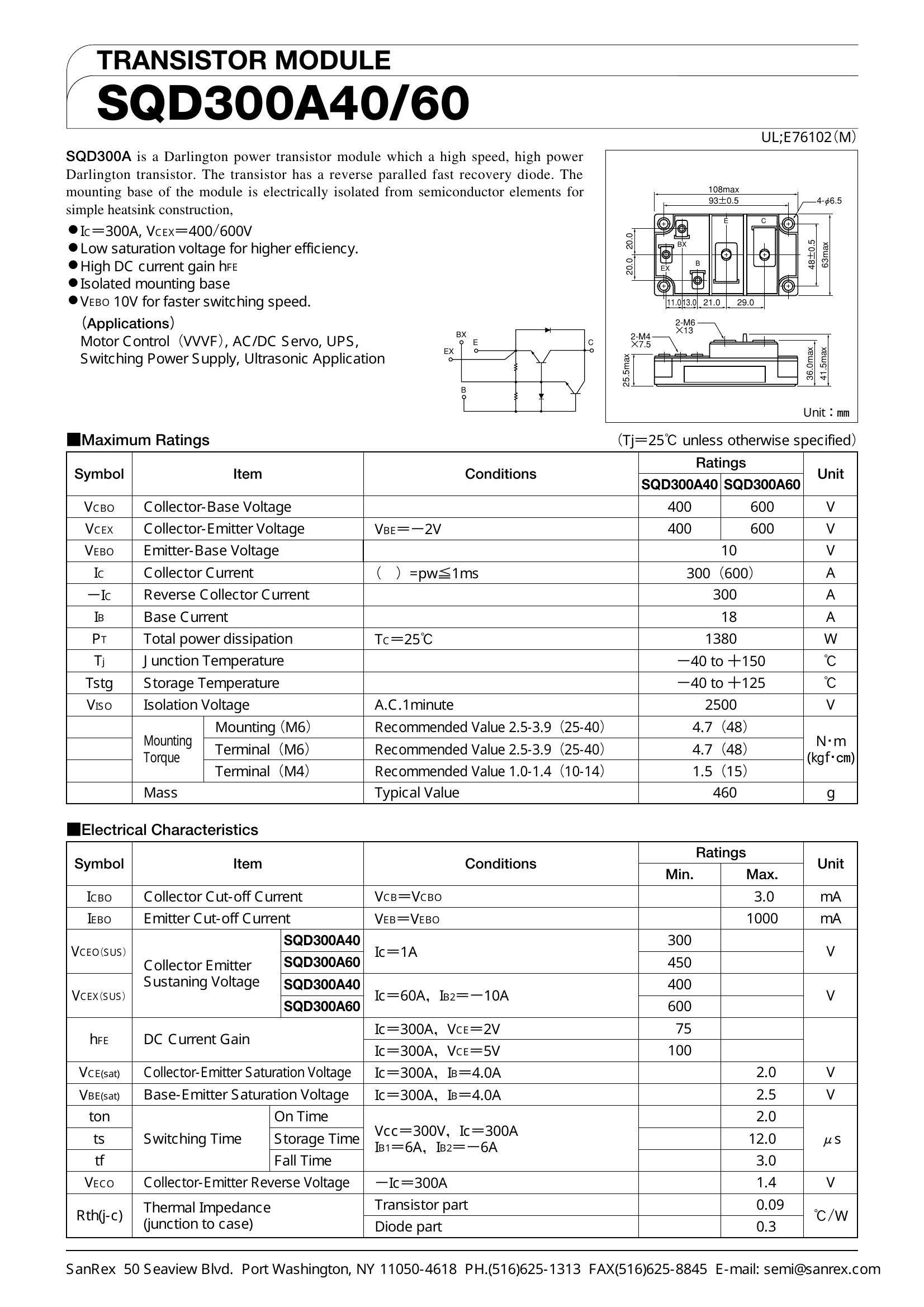

DatasheetAvailable on this page (PDF)

Technical document (PDF)  |  Request a quote for SQD300A60 (reply within 24 hours)

Related Part Numbers

SQD200A60
600V, 200A		SQD300A40
400V, 300A		SQD200A40
400V, 200A		SQD50A90
1000(V) / 50(A)
SQD400A60S
600V, 400A		SQD40A60SSQD300AA100
1000V, 300A		SQD300AA100E
1000V, 300A
SQD300AA120
1200V, 300A		SQD300BA60
600V, 300A		SQD300H100SQD35JA140
1400V, 35A
SQD35JA160
1600V, 35A		SQD200BA60SQD200AA120
1200(V) / 200(A)		SQD200AA100
