SF100CB100SanRex - Power Transistor Module

SF100CB100 Description

The SanRex SF100CB100 is a power semiconductor module, available from USComponent. Components of this type are commonly used in motor drives, power conversion and industrial control equipment.

USComponent, a BBB A+ accredited business, helps engineers and maintenance teams source power semiconductors and industrial components, including older and hard-to-find part numbers. Please confirm ratings, package and pin-out against the manufacturer's datasheet before ordering, and request a quote for current pricing and lead time on the SF100CB100.

Target Applications

SanRex SF100CB100 finds applications in various industries and systems where high power switching is required.

Key Specifications

Manufacturer	SanRex
Configuration	Power MOSFET module, isolated mounting base
VDSS	1000 V
ID	100 A (DC)
Reverse drain current	100 A
RDS(on) max.	150 mΩ @ 100 A, VGS = 15 V
Isolation voltage	2500 V (AC RMS, 1 min)
Mounting	M6
Weight	460 g

SF100CB100 Video

Download SF100CB100 Datasheet

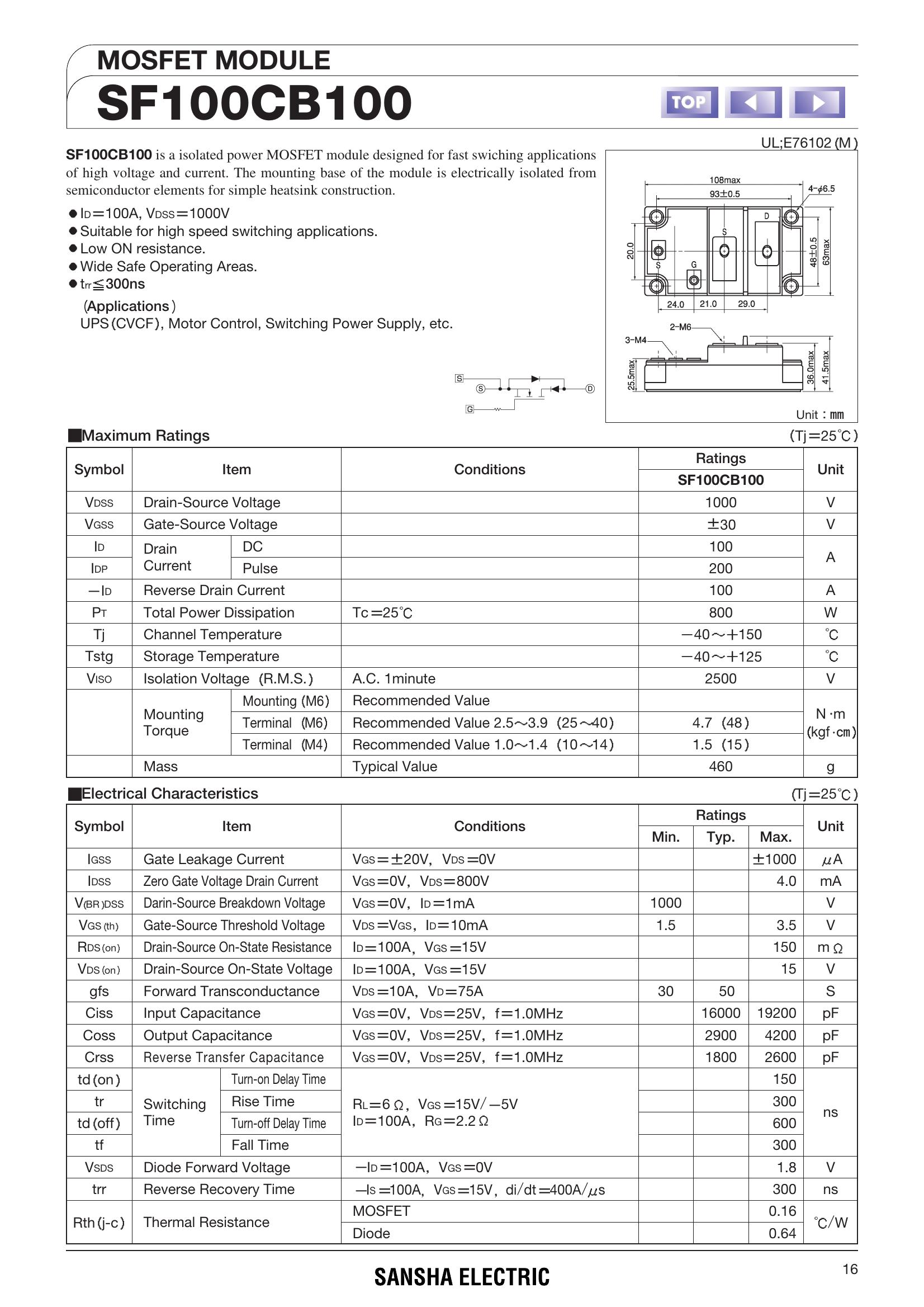

SF100CB100 PDF Datasheet
