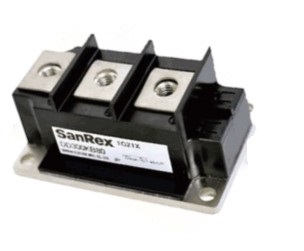

PD250GB80 SanRex - Thyristor / Diode Module

PD250GB80 Description

The PD250GB80 from SanRex is a thyristor module. It is used in phase-controlled rectifiers, soft starters, battery chargers and temperature controllers for furnaces and heaters.

USComponent has been supplying power semiconductors since 2001, including discontinued and hard-to-find part numbers. Send us an RFQ for the PD250GB80 and we will reply with price, condition and lead time. Please check the manufacturer's datasheet to confirm ratings, package and pin-out before you order.

Target Applications

SanRex PD250GB80 is used for AC/DC power conversion and control: controlled and uncontrolled rectifiers, DC motor drives, soft starters, battery chargers, welding equipment, heater and temperature control, and AC power controllers.

Key Specifications

Manufacturer	SanRex
Configuration	Thyristor / diode module (PD type: thyristor + diode)
VRRM / VRSM	800 V / 960 V
IT(AV)	250 A
IT(RMS)	390 A
ITSM	5000 / 5500 A (50 / 60 Hz)
Isolation voltage	2500 V (AC RMS, 1 min)
Terminal torque	M8: 8.8 - 10 N·m recommended
Weight	510 g
