KD55F40SanRex - RECTIFIER DIODE

KD55F40 Description

SanRex KD55F40 is a rectifier diode rated at 400 V and 55 A. Components of this type are commonly used in input rectifiers for drives and power supplies, battery chargers, welding equipment and freewheeling circuits.

USComponent, a BBB A+ accredited business, helps engineers and maintenance teams source power semiconductors and industrial components, including older and hard-to-find part numbers. Please confirm ratings, package and pin-out against the manufacturer's datasheet before ordering, and request a quote for current pricing and lead time on the KD55F40.

Summary of Features

Target Applications

SanRex KD55F40 is used for VariourectifiersBatterchargersDmotodrives.

Key Specifications

Manufacturer	SanRex
Configuration	Diode module, DD55F / KD55F series (two diode chips in a 25 mm package)
VRRM / VRSM	400 V / 480 V
IF(AV)	55 A (single phase, half wave, TC = 89 °C)
Isolation voltage	2500 V (AC RMS, 1 min)
Terminal torque	M5: 1.5 - 2.5 N·m recommended
Weight	170 g
UL	E76102

KD55F40 Video

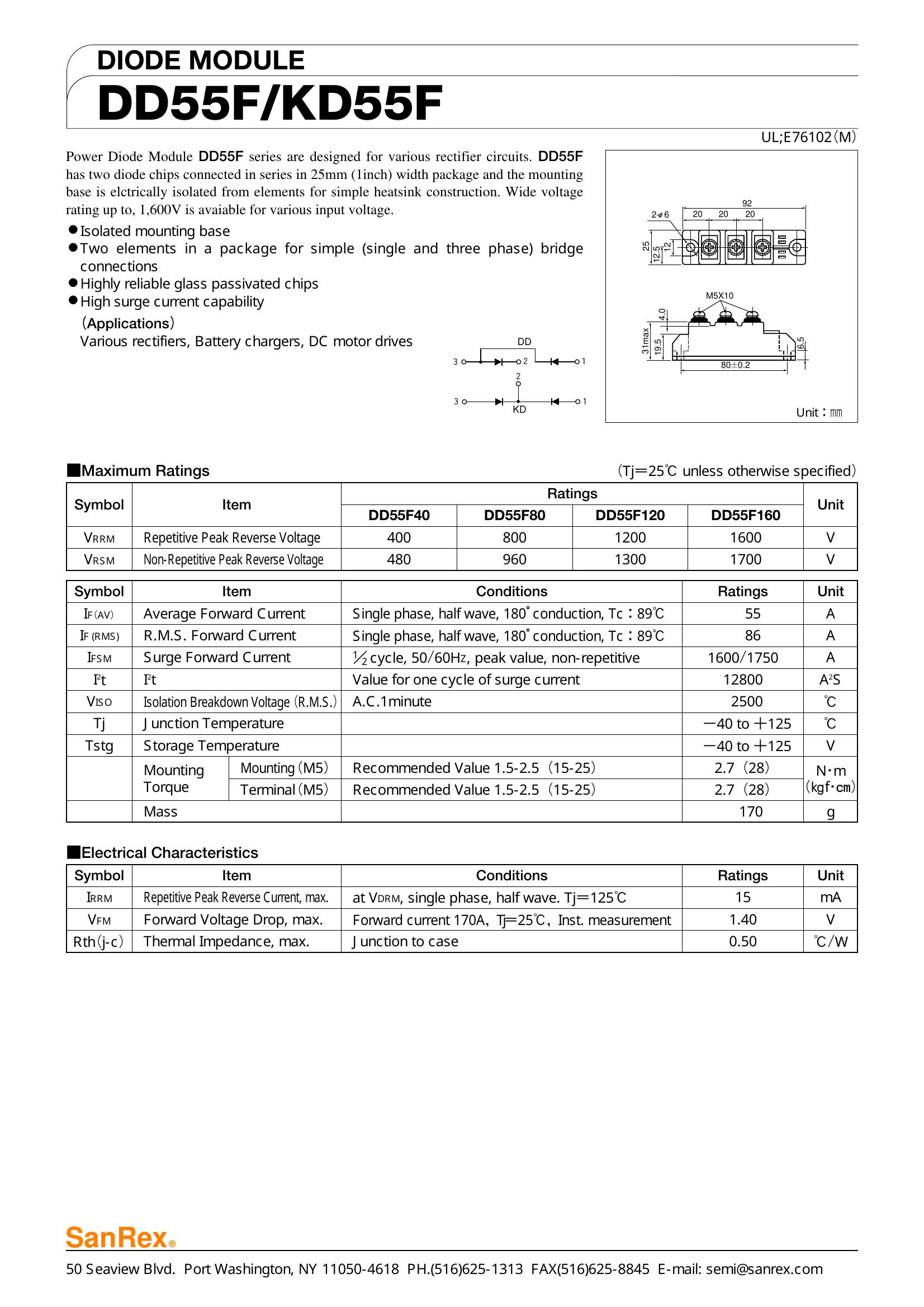

Download KD55F40 Datasheet

KD55F40 PDF Datasheet
