FRS200CA120 SanRex - Diode Module

FRS200CA120 Description

SanRex FRS200CA120 is a diode module. Typical applications include AC-to-DC rectification in drives and power supplies, freewheeling paths and battery charging.

Request a quote for the FRS200CA120 and our team will get back to you with price, quantity available and lead time. We ship worldwide. As with any power device, please check the manufacturer's datasheet to confirm it matches your design.

Summary of Features

Target Applications

SanRex FRS200CA120 is used for AC/DC power conversion and control: controlled and uncontrolled rectifiers, DC motor drives, soft starters, battery chargers, welding equipment, heater and temperature control, and AC power controllers.

Key Specifications

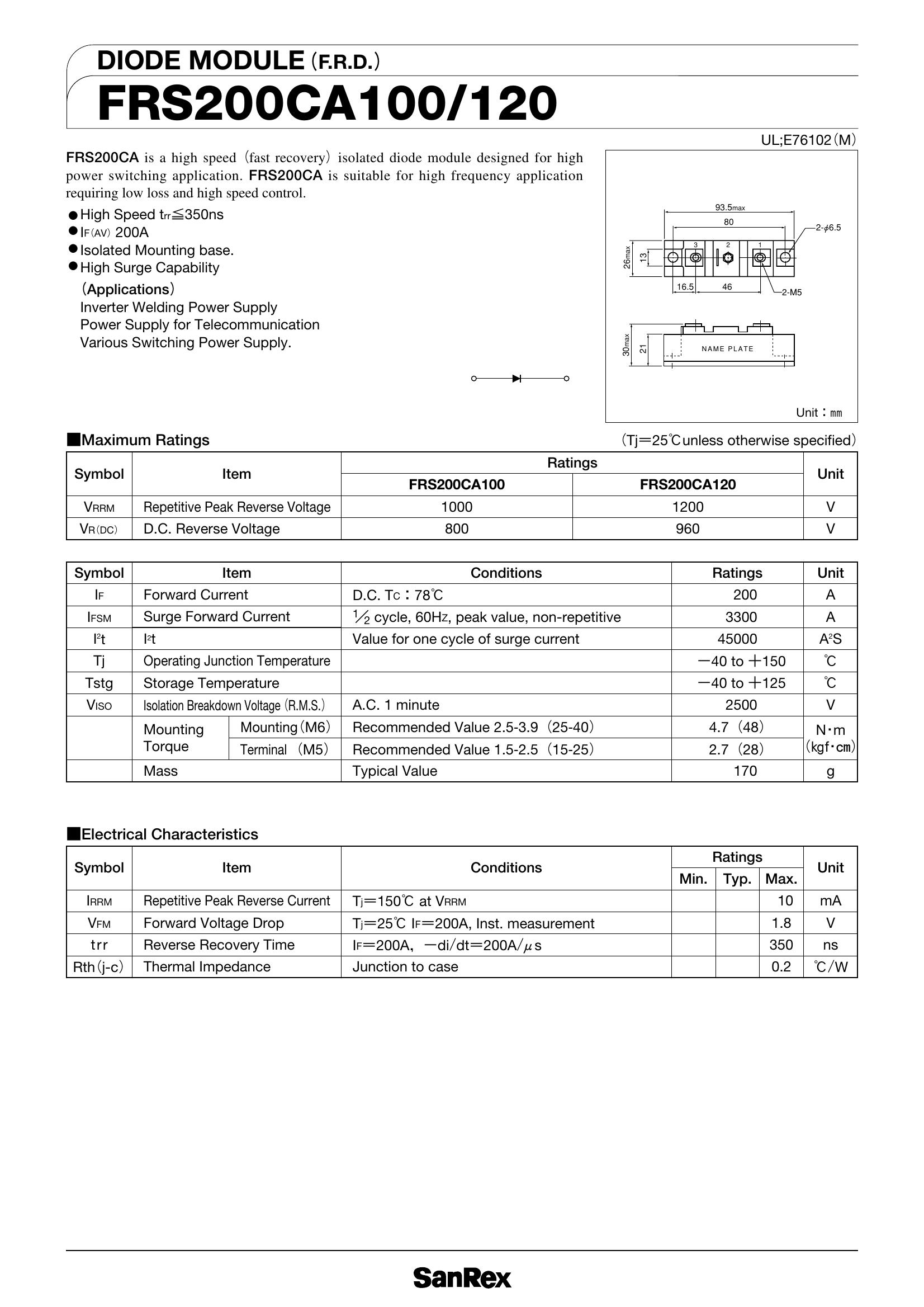

FRS200CA120 is a 1200 V / 200 A diode module from SanRex. Source: manufacturer datasheet (detailed).

Parameter	Value
Manufacturer	SanRex
Product type	Diode Module
Configuration	Single fast-recovery diode
Repetitive peak reverse voltage (VRRM)	1200 V
D.C. reverse voltage (VR DC)	960 V
Forward current (IF)	200 A (D.C., TC = 78 °C)
Surge forward current (IFSM)	3300 A (1/2 cycle, 60 Hz, peak, non-repetitive)
I²t	45000 A²s
Forward voltage drop (VFM)	max. 1.8 V (Tj = 25 °C, IF = 200 A)
Reverse recovery time (trr)	max. 350 ns (IF = 200 A, di/dt = 200 A/µs)
Isolation voltage (VISO)	2500 V (R.M.S., A.C. 1 minute)
Operating junction temperature (Tj)	up to 150 °C
Datasheet	Available on this page (PDF)
