DFA200AA160 SanRex - Power Module

DFA200AA160 Description

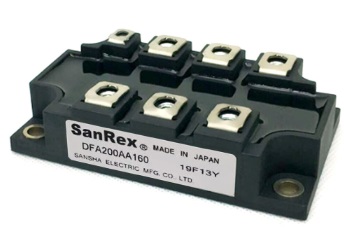

SanRex DFA200AA160 is a rectifier bridge rated at 1600 V and 200 A. It takes care of AC-to-DC input rectification in motor drives, power supplies, battery chargers and welding equipment.

USComponent has been supplying power semiconductors since 2001, including discontinued and hard-to-find part numbers. Send us an RFQ for the DFA200AA160 and we will reply with price, condition and lead time. Please check the manufacturer's datasheet to confirm ratings, package and pin-out before you order.

Target Applications

SanRex DFA200AA160 is used for Switching Power Supply, Inverter Welding Power Supply and Power Supply for Telecommunication.

Key Specifications

Manufacturer	SanRex
Configuration	Three-phase diode bridge (six diodes) plus a thyristor on the DC line, isolated mounting base
VRRM	1600 V
Output current ID	200 A (DC, three-phase full wave, TC = 96 °C)
Surge current IFSM	1850 / 2000 A (50 / 60 Hz, 1 cycle)
Forward voltage VFM max.	1.35 V @ 200 A
Isolation voltage	2500 V (AC RMS, 1 min)
Weight	460 g

DFA200AA160 Video

Technical document (PDF)  |  Request a quote for DFA200AA160 (reply within 24 hours)
