DF30CA80SanRex - BRIDGE RECTIFIER

DF30CA80 Description

The SanRex DF30CA80 is a rectifier bridge rated at 800 V and 30 A, available from USComponent. This type of device is widely used in AC-to-DC input rectification in motor drives, power supplies and battery chargers.

USComponent supplies power semiconductors and industrial electronic components to engineers, OEMs and maintenance teams worldwide, including legacy and hard-to-find part numbers. Please confirm ratings, package and pin-out against the manufacturer's datasheet before ordering, and request a quote for current pricing and lead time on the DF30CA80.

Target Applications

SanRex DF30CA80 is used for AC/DC power conversion and control: controlled and uncontrolled rectifiers, DC motor drives, soft starters, battery chargers, welding equipment, heater and temperature control, and AC power controllers.

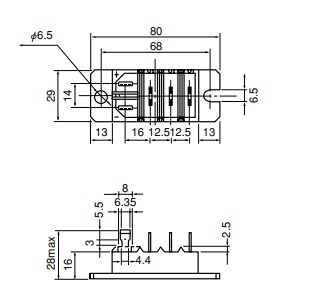

Key Specifications

Manufacturer	SanRex
Configuration	Three-phase diode bridge (six diodes), isolated mounting base
VRRM / VRSM	800 V / 960 V
Output current ID	30 A (DC, three-phase full wave, TC = 122 °C)
Surge current IFSM	775 / 850 A (50 / 60 Hz, 1 cycle)
Isolation voltage	2500 V (AC RMS, 1 min)
Mounting torque	M6: 2.5 - 3.9 N·m recommended
Weight	90 g
