S30VTA60 Description

S30VTA60 is a 3 phase bridge diode module, dual in-line package (VTA type) from Shindengen, rated 600V, 30A. Typical applications: Big power supply, air conditioner and factory automation, inverter.

USComponent supplies S30VTA60 and other power semiconductors and power supplies, including discontinued types. Request a quote for price and lead time - we reply within 24 hours.

Summary of Features

Target Applications

Shindengen S30VTA60 is used for Big power supply, air conditioner and factory automation, inverter.

Key Specifications

S30VTA60 is a 3 phase bridge diode module, dual in-line package (VTA type) from Shindengen, rated 600V, 30A. Source: manufacturer datasheet.

Parameter	Value
Manufacturer	Shindengen
Maximum reverse voltage VRM	600 V
Average rectified forward current IO	30 A (Tc = 121 °C, with heatsink)
Peak surge forward current IFSM (50 Hz, per diode)	400 A
I²t (1 ms ≤ t < 10 ms)	800 A²s
Junction temperature Tj	150 °C
Dielectric strength	2 kV AC, 1 min

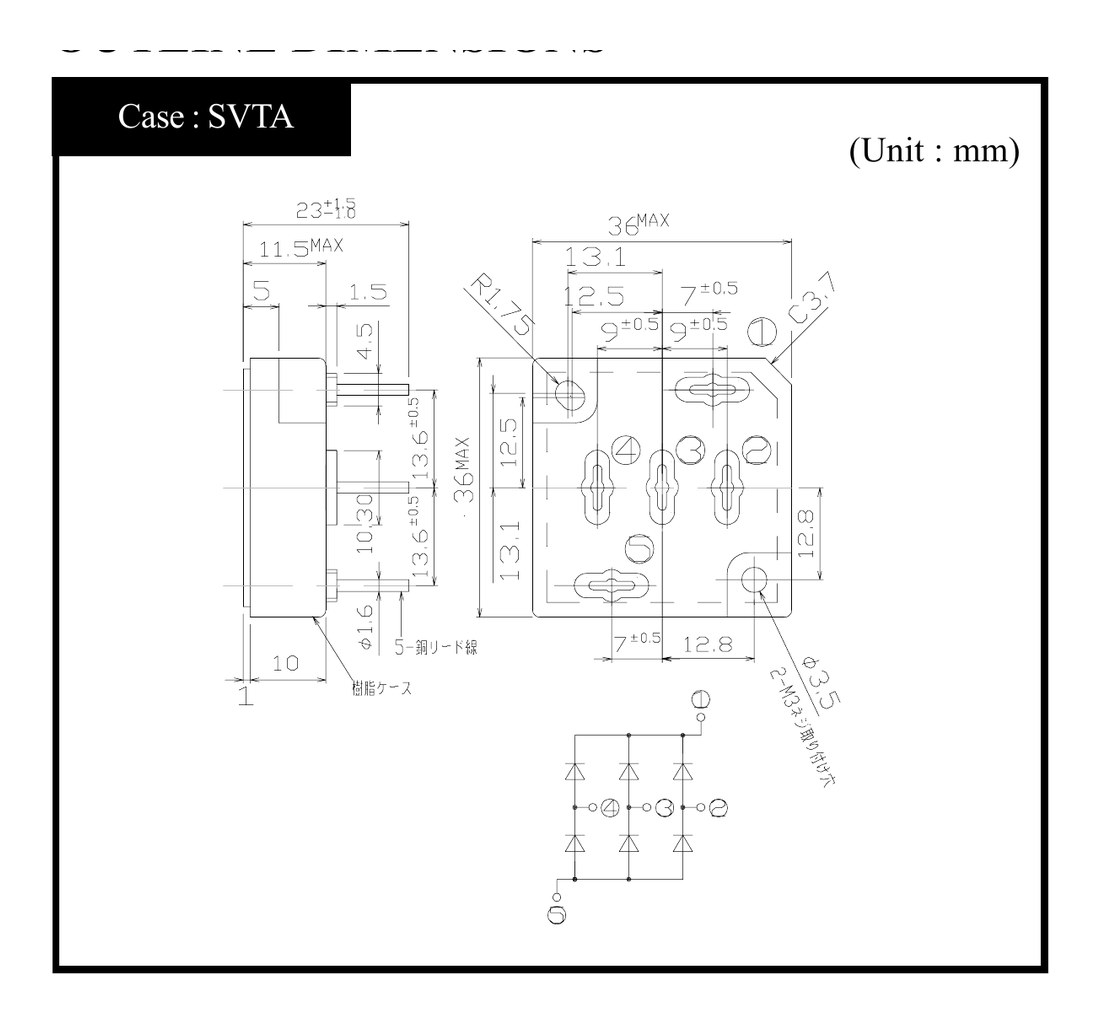

Package	Dual in-line, case 2F (SVTA)
Datasheet	Available on this page (PDF)
