T700163504BY Powerex - Thyristor

Category: Thyristors / SCRs (Discrete & Press-pack)

Specifications: 1600V, 350A

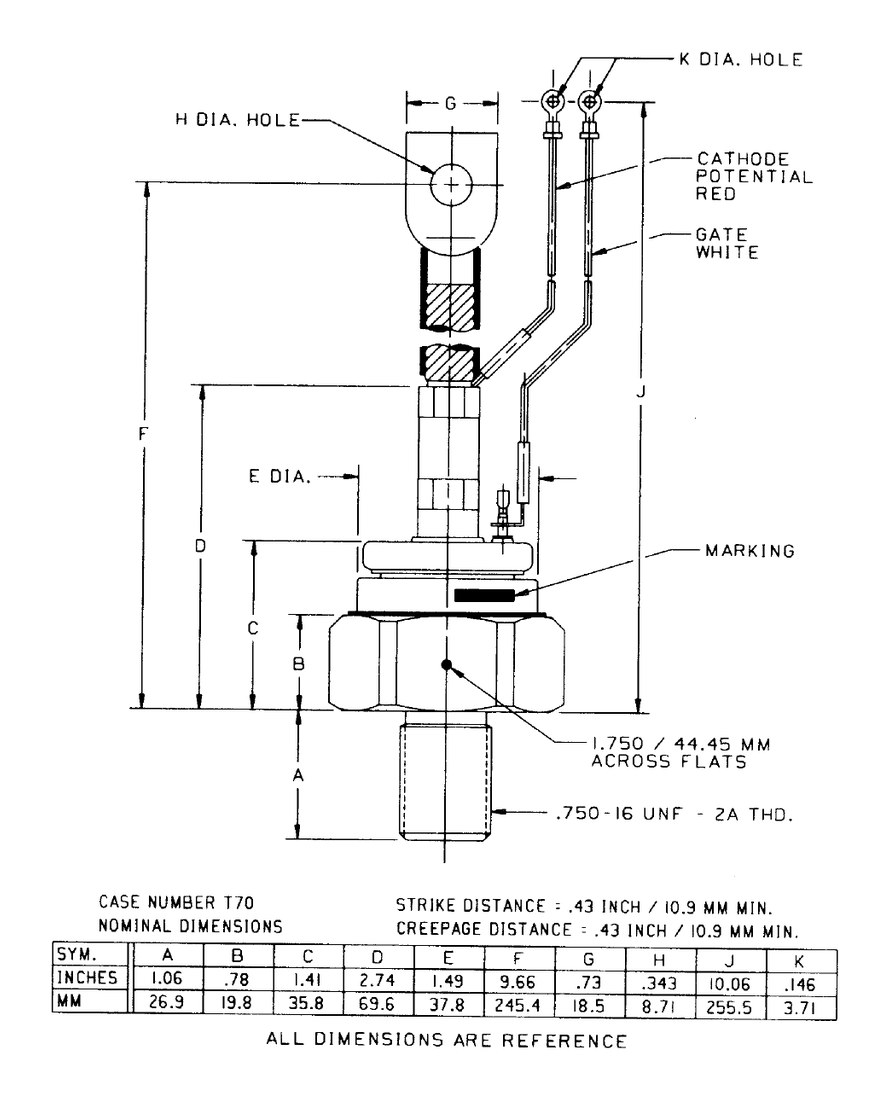

T700163504BY, POWEREX, Phase Control SCR

Availability and lead time are confirmed in our quote.

  • ✓ Quote within 24 hours
  • ✓ Original manufacturer parts, inspected before shipping
  • ✓ Credit cards and NET terms accepted

Or email sales@uscomponent.com or call 1-281-968-0718.

T700163504BY Description

T700163504BY is a phase control SCR (thyristor), T700 series, stud/press type from Powerex, rated 1600V, 350A. Typical applications: Phase control applications.

USComponent supplies T700163504BY and other power semiconductors and power supplies, including discontinued types. Request a quote for price and lead time - we reply within 24 hours.

Summary of Features

  • All-diffused, compression bonded encapsulated (CBE) device
  • Field-proven amplifying (di/namic) gate
  • Low on-state voltage
  • High di/dt

Target Applications

Powerex T700163504BY is used for Phase control applications.

Key Specifications

T700163504BY is a phase control SCR (thyristor), T700 series, stud/press type from Powerex, rated 1600V, 350A. Source: manufacturer datasheet.

ParameterValue
ManufacturerPowerex
Repetitive peak voltage1600 V (voltage code 16)
Average on-state current IT(AV)350 A (current code 35)
RMS on-state current550 A
Surge current ITSM (60 Hz / 50 Hz)10,000 A / 9100 A
Peak on-state voltage VTM (25 °C, 625 A)1.40 V
Gate trigger current / voltage150 mA / 3 V
DatasheetAvailable on this page (PDF)

Note: data taken from the Powerex datasheet of T700 series (300-350 A, up to 2400 V), which covers T700163504BY.
